Polarizer, 1550 nm, SM to PM, Pigtailed, FC/APC Connectors

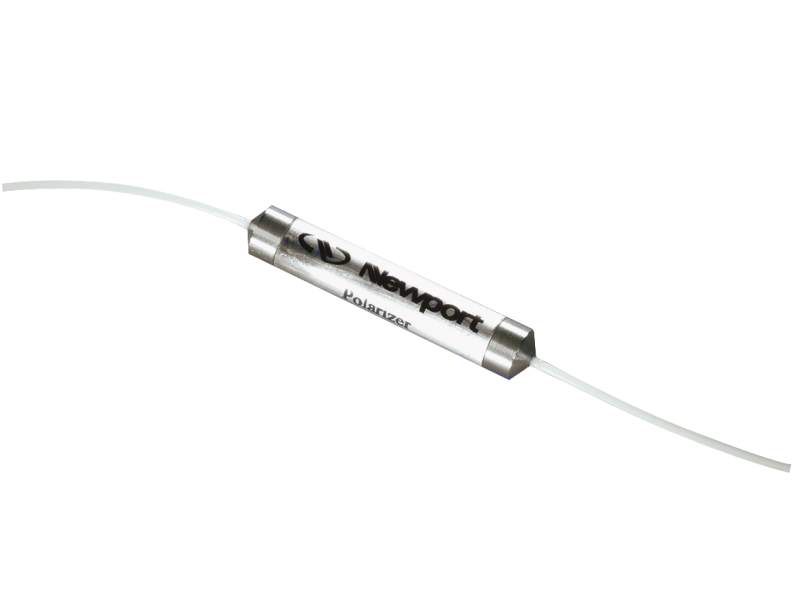

The F-ILP-2-F-SP-FA Fiber Optic In-Line Polarizer is designed for 1550 nm fiber optic networks and measurement applications, which include polarization analyzing, polarization monitoring and control, Signal-to-Noise Ratio (SNR) monitoring, Polarization Mode Dispersion (PMD) monitoring, spectrum filtering and control, Polarization Extinction Ratio (PER) improvement, fiber laser mode-locking and polarization interferometry. When combined with Newport's F-POL Series Polarization Controllers it can also function as a variable fiber optic attenuator. The F-ILP Series is based on integrating a high PER micro-polarizer in a rugged stainless steel package for high optical performance and stability. These compact devices offer low insertion loss, low back reflection and high extinction ratio. This version has a 1 m Corning SMF-28 fiber input with a FC/APC connector and a 1 m Fujikura PM Panda fiber output with 900 μm loose tube and a FC/APC connector.
