Sorry, this product is no longer offered for sale.

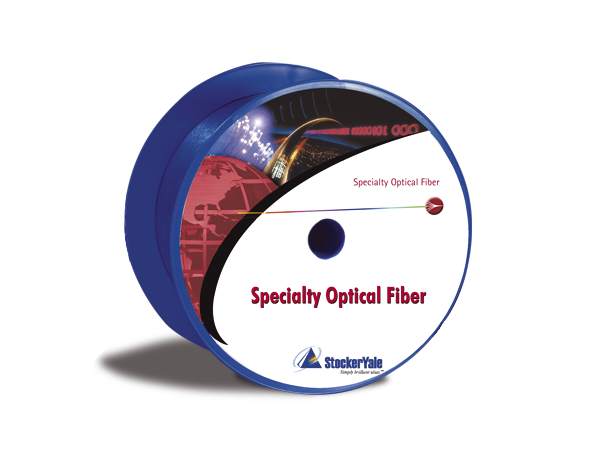

Erbium Doped Optical Fiber, C-Band
The EDF-T3 C-band Erbium Doped Fiber provides low splice loss, high strength enhanced overlap integrals and pumping at 980nm and 1480 nm.
The model will be obsolete upon depletion of stock. A replacement model is F-EDF-2.
Standard pricing is per meter.
While supplies last!
Specifications
- Fiber TypeErbium Doped
- Mode Field Diameter, Nominal4.9 - 6.5 µm
- Cladding Diameter125 ±1 µm
- Coating Diameter245 ±10 µm
- Cut-off Wavelength1100 - 1250 nm
- Buffer Coating MaterialDual Acrylate
- Maximum Attenuation7 dB/km
- Numerical Aperture0.21 - 0.25
- Proof Test100 kpsi
- Absorption at Pump/Peak5.0 - 8.0 dB/m
