Sorry, this product is no longer offered for sale. It was discontinued on Apr 26, 2024
EDFA Tap Coupler, 1% Coupling, 1530-1560 nm, FC/APC

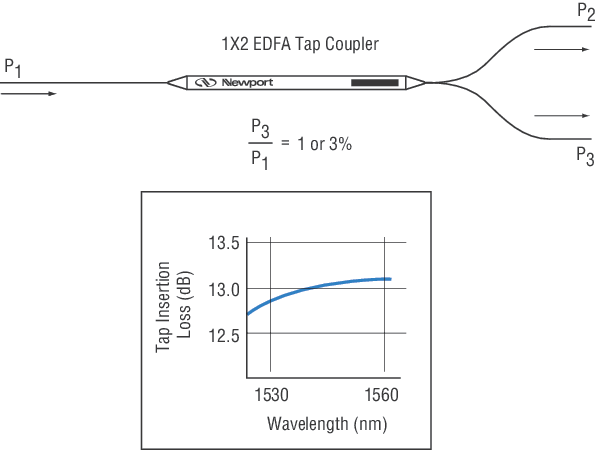

The F-CPL-T15010-FCAPC Single-mode EDFA Tap Coupler with 1% Coupling is designed for use in Erbium-Doped Fiber Amplifiers (EDFAs), and offers superb insertion loss and wavelength dependence. It is ideal for use as input and output power monitors in applications in power and pre-amplifiers, and repeaters where signal insertion loss minimization and tap ratio wavelength independence are vital. FC/APC connectors.
Specifications
- TypeEDFA Tap Coupler
- Fiber TypeSinglemode
- Coupling Ratio1%/99%
- Fiber ConnectorFC/APC
- Operating Wavelength1530-1560 nm
- Typical Insertion Loss0.3 dB
- Excess Loss, Typical0.2 dB
- Excess Loss, Maximum23 dB
- Option Code76
- Package TypeA
- Operating Humidity90–95%
Resources & Downloads
2D Product Drawings
Fiber pkg -A-S(65.2 kB, PDF)
