EDFA Tap Coupler, 1% Coupling, 1530-1560 nm.

WDM and EDFA Tap Couplers

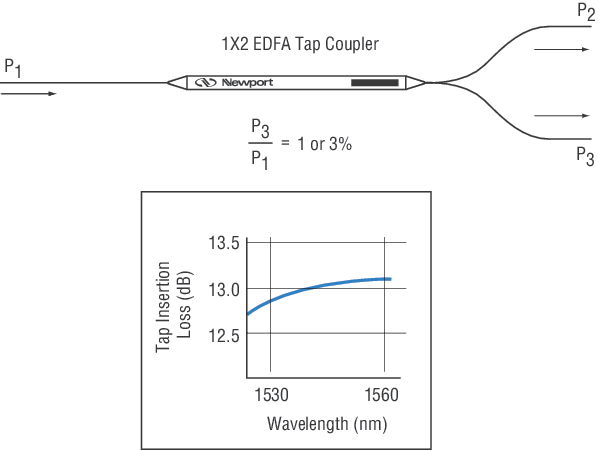

The F-CPL-T15010 Single-mode EDFA Tap Coupler with 1% Coupling is designed for use in Erbium-Doped Fiber Amplifiers (EDFAs), and offers superb insertion loss and wavelength dependence. It is ideal for use as input and output power monitors in applications in power and pre-amplifiers, and repeaters where signal insertion loss minimization and tap ratio wavelength independence are vital. Bare fiber pigtails.

Specifications

Technical Specs

Type
EDFA Tap Coupler
Fiber Type
Singlemode
Coupling Ratio
1%/99%
Fiber Connector
Bare Fiber
Operating Wavelength
1530-1560 nm
Typical Insertion Loss
0.3 dB
Excess Loss, Typical
0.2 dB

Excess Loss, Maximum
23 dB
Package Type
A
Operating Humidity
90–95%
Operating Temperature
-40 to +75 °C
Storage Temperature
-40 to +85 °C

Type
EDFA Tap Coupler
Fiber Type
Singlemode
Coupling Ratio
1%/99%
Fiber Connector
Bare Fiber
Operating Wavelength
1530-1560 nm
Typical Insertion Loss
0.3 dB
Excess Loss, Typical
0.2 dB

Excess Loss, Maximum
23 dB
Package Type
A
Operating Humidity
90–95%
Operating Temperature
-40 to +75 °C
Storage Temperature
-40 to +85 °C

Resources & Downloads

2D Product Drawings

Fiber pkg -A-S(65.2 kB, PDF)
