Sorry, this product is no longer offered for sale.
Fiber Pigtailed Collimator, 1550nm, 62.5/125µm Multimode, Custom

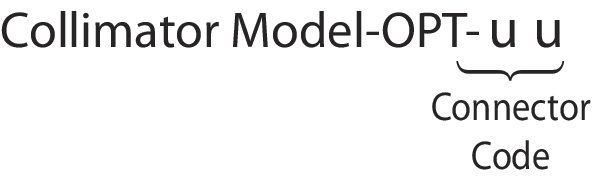

The F-COL-62-15-OPT Fiber Pigtailed Collimator consists of a multimode 62.5/125 μm fiber pigtail precisely aligned to a Gradient Index (GRIN) lens assembly, which is ideal for collimated light applications. Fiber termination options are available. Please contact Newport for more details. Each fiber is contained in a glass ferrule, angle polished and AR coated to assure low back-reflection into the fiber pigtail. A protective metal housing sleeve and strain relief boot provide excellent environmental protection to the final assembly.
Applications for a single fiber collimator include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.
Applications for a single fiber collimator include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.
Specifications
- TypeFiber-optic Collimator
- Fiber TypeMultimode
- Operating Wavelength1550 nm
- Maximum Insertion Loss1.0 dB
- Typical Insertion Loss0.8 dB
- Operating Humidity0.85
- Beam Diameter (1/e<sup>2</sup>)≤ 1 mm
- Acceptance Angle≤ 1˚
- Beam Divergence≤ 1˚
- Core Diameter62.5 µm
- Cladding Diameter125 µm
- Spectral Width (FWHM)≥ ± 30 nm
- Working Distance0.5 - 1.5 cm
Resources & Downloads
2D Product Drawings
Collimator-S(74.1 kB, PDF)
