Sorry, this product is no longer offered for sale.

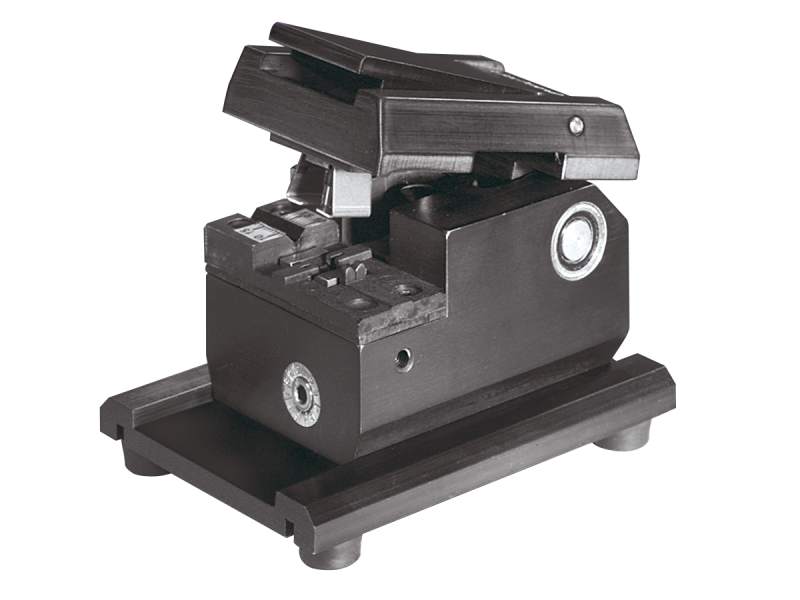

Fiber Cleaver, Manual, 0.5 Degree Angle, 125 um Fiber, 3 mm min. Cleave

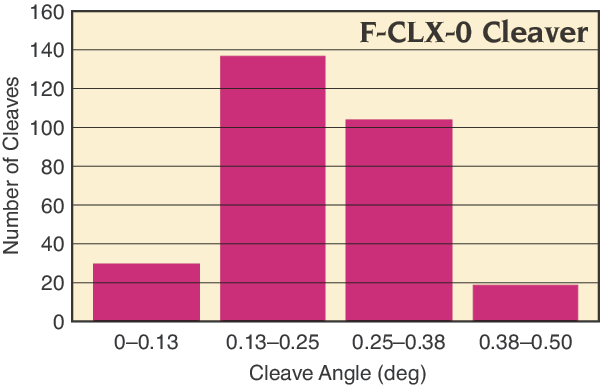

The F-CLX-0-3 Manual Fiber Cleaver is simple to operate and produces very high quality cleaves. Once the fiber is placed in the V-groove, the patented mechanism clamps, tenses, scribes and cleaves the fiber with a simple downward push of the top lever. The F-CLX-0-3 perpendicular optical fiber cleaver provides a typical end angle of 0.25 ° and has an excellent cleave repeatability. A minimum cleave length of only 3 mm is possible. Other features include a long-life blade angled to reduce stresses during cleaving and providing up to 20,000 cleaves and a scale for gauging cleave lengths.
Specifications
- TypeFiber Cleaver
- Cleave Angle<0.5° ave., <0.6° for 99% of cleaves
- Cladding Diameter125 µm
- Dimensions72 x 72 x 90 mm
Resources & Downloads
Manuals
CLX Series Fiber Cleaver User Manual(638.5 kB, PDF)
