Sorry, this product is no longer offered for sale. The recommended replacement product is F-CIR-13-P-FA.

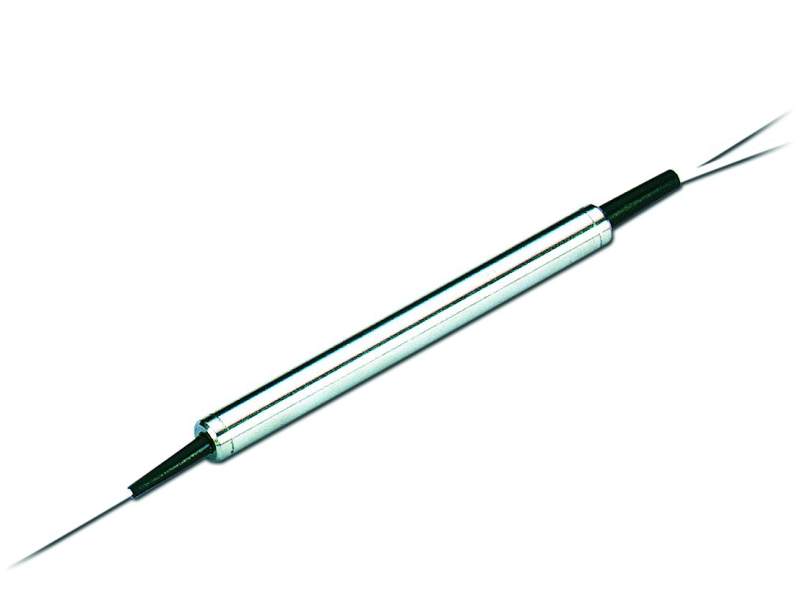

Polarization Insensitive Circulator, 1310 nm, FC/APC Connectors.

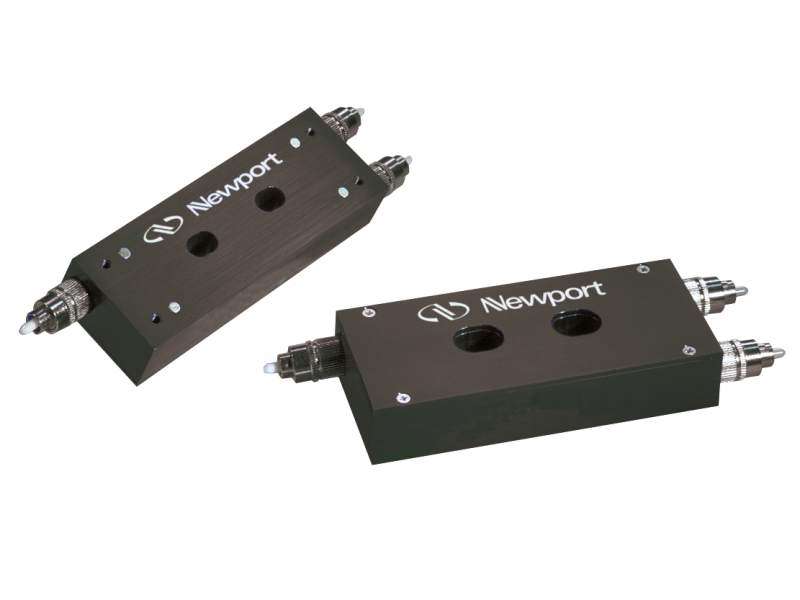

polarization insensitive fiber-optic circulators

The F-CIR-13-N-FA Polarization Insensitive Circulator features low insertion loss, high isolation, low Polarization Dependent Loss (PDL), and is the perfect solution for add/drop filters, erbium-doped fiber amplifiers (EDFA), dispersion compensation, bi-directional communication, and optical R & D at 1310 nm. This version has FC/APC bulkhead connectors.

While supplies last!

Specifications

Technical Specs

Type
Polarization Insensitive Circulator
Fiber Type
Singlemode
Fiber Connector
FC/APC
Operating Wavelength
1310 nm
Typical Insertion Loss
0.7 dB
Return Loss
50 dB
Bandwidth
± 20 nm
Maximum Optical Power
300 mW

Package Type
No-Tail
Dimensions
89 x 38 x 16 mm
Isolation/Cross Talk
50 dB
Polarization Mode Dispersion
0.1 ps
Polarization Dependent Loss, Typical
0.1 dB @ 23°C
Operating Temperature
0 to 70°C

Type
Polarization Insensitive Circulator
Fiber Type
Singlemode
Fiber Connector
FC/APC
Operating Wavelength
1310 nm
Typical Insertion Loss
0.7 dB
Return Loss
50 dB
Bandwidth
± 20 nm
Maximum Optical Power
300 mW

Package Type
No-Tail
Dimensions
89 x 38 x 16 mm
Isolation/Cross Talk
50 dB
Polarization Mode Dispersion
0.1 ps
Polarization Dependent Loss, Typical
0.1 dB @ 23°C
Operating Temperature
0 to 70°C

Resources & Downloads

2D Product Drawings

Fiber Optic Circulator Drawing.pdf(141.6 kB, PDF)
