This product is discontinued. No replacement is available.

Bare Fiber Test Adapter, Singlemode, SC/APC Connector

The F-BFTA-S-SCAPC Bare Fiber Test Adapter accepts cleaved and non-cleaved fiber, requires only 3/4 in. of bare fiber exposed and has a typical insertion loss of less than 0.5 dB when using cleaved fiber. No messy gel applicators or reservoirs to fill. Simply strip your fiber and insert.

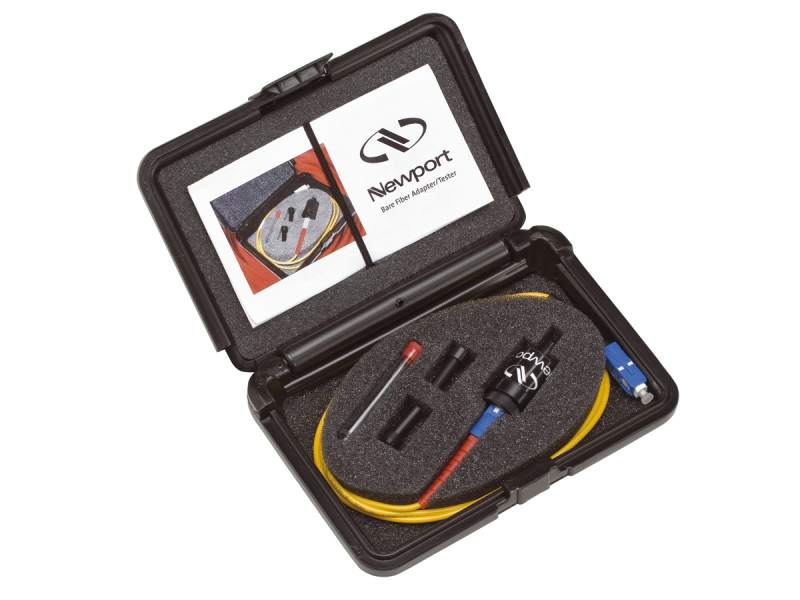

Designed to quickly connect to unterminated (bare fiber) for testing, servicing, or communication requirements. System includes single-mode SC/APC Patch Cable, Bare Fiber Test Adapter, and 2 Disposable Matching Gel Cartridges. Simply connect the patch cable to your test equipment and insert bare fiber into the end of the test module. Connections are suitable for many testing applications with results similar to a standard terminated piece of fiber.

Specifications

Technical Specs

Type
Bare Fiber Adapter
Fiber Connector
SC/APC
Fiber Type
Single-mode 9/125 µm
Typical Insertion Loss
0.5 dB

Fiber Length
1 m
Operating Temperature
10 to 30°C

Type
Bare Fiber Adapter
Fiber Connector
SC/APC
Fiber Type
Single-mode 9/125 µm
Typical Insertion Loss
0.5 dB

Fiber Length
1 m
Operating Temperature
10 to 30°C

Resources & Downloads

Manuals

Bare Fiber Tester Instruction Sheet(119.7 kB, PDF)
