Sorry, this product is no longer offered for sale.
Patch Cord, Hollow Core Fiber, 11 µm Core, 1550 nm, 1 m, FC/UPC
The F-AIR-11/1550C-1FC is a 1 m long fiber patch cord with FC/UPC connectors at both ends Fiber Patch cord .

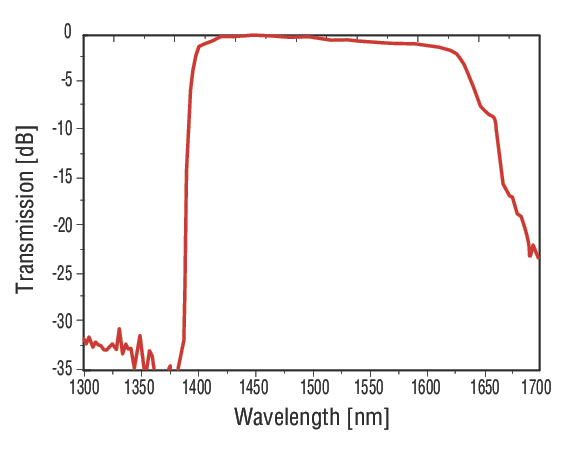

The F-AIR-11/1550 (NKT P/N HC-1550-02) Air Guided Photonic Crystal Fiber guides light in a hollow, 10.9 μm air core using the Photonic Bandgap (PBG) effect. The highly periodic structure of air holes in the cladding of the fiber creates a photonic bandgap. This means that light of frequencies within the PBG is not allowed to propagate out through the cladding and may be trapped in the core of the fiber. In contrast to index-guiding fibers, there is no requirement on the refractive index of the core region to be larger than the index of the cladding. An inherent feature of PBG-Guiding is that the fiber only guides light in a limited spectral region. This fiber operates with <0.1 dB/m attenuation at 1570 nm. Typical bandwidth is about 200 nm. Outside this region, the fiber core is anti-guiding. Extreme dispersion properties may be found in the PBG fibers, such as anomalous dispersion values in the thousands of ps/nm/km. Due to a negligible contribution from the core material (air), the total dispersion of PBG fibers is dominated by wave-guide dispersion.
The F-AIR-11/1550 (NKT P/N HC-1550-02) Air Guided Photonic Crystal Fiber guides light in a hollow, 10.9 μm air core using the Photonic Bandgap (PBG) effect. The highly periodic structure of air holes in the cladding of the fiber creates a photonic bandgap. This means that light of frequencies within the PBG is not allowed to propagate out through the cladding and may be trapped in the core of the fiber. In contrast to index-guiding fibers, there is no requirement on the refractive index of the core region to be larger than the index of the cladding. An inherent feature of PBG-Guiding is that the fiber only guides light in a limited spectral region. This fiber operates with <0.1 dB/m attenuation at 1570 nm. Typical bandwidth is about 200 nm. Outside this region, the fiber core is anti-guiding. Extreme dispersion properties may be found in the PBG fibers, such as anomalous dispersion values in the thousands of ps/nm/km. Due to a negligible contribution from the core material (air), the total dispersion of PBG fibers is dominated by wave-guide dispersion.
Specifications
- Fiber TypeHollow Core Photonic Bandgap
- Fiber Jacket3mm PCV
- Core Diameter10.9 µm
- Cladding Diameter120 µm
- Coating Diameter220 µm
- MaterialPure Silica
- Fiber ConnectorFC/UPC
- Fiber Length1 m
- Buffer Coating MaterialSingle layer acrylate
- Maximum Attenuation<0.1 dB/m @ 1550 nm
- Numerical Aperture0.12
- Proof Test100 kpsi
Resources & Downloads
Literature
F-AIR-11-1550 Data Sheet(484.7 kB, PDF)
