The U100-A2K-NL is combined with the 10D20ER.4 mirror. The U100 mount coupled with the 10D20ER.4 mirror is an ideal packaged set for standard laboratory applications. Note that each item will be packaged separately for shipment.

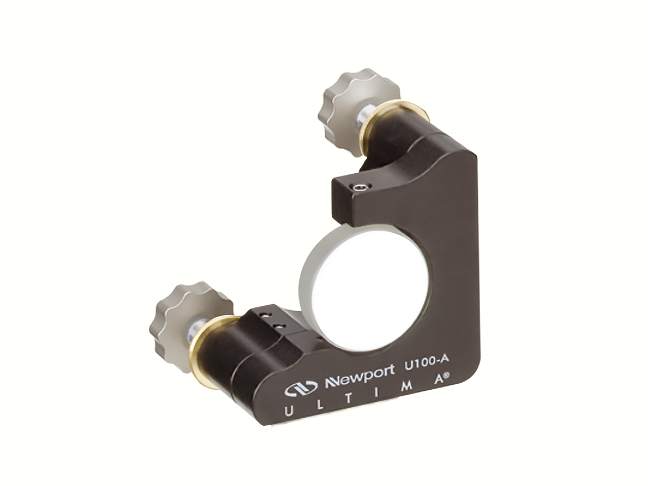

U100-A2K-NL is a Precision Clear Edge Mirror Mount, 1.0 in. Diameter, with 2 Knob Adjustment. It is a Clear Quadrant Mirror Mount offering unsurpassed functionality. Thick front and rear plates with stiff springs improve the long-term stability and provide greater protection against vibrations. The patented clear quadrant design exposes the edge of the optic, allowing beams to pass close to the edge of a mounted optic.
The 10D20ER.4 Broadband Metallic Mirror is an excellent general purpose, broadband reflectors. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. Average reflectivity is greater than 96% from 650–1700 nm and greater than 98% from 1.7–2.0 μm. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
Additional CAD file downloads are not available for this product.
ER4-U100 - Drawings
Additional drawings are not available for this product.
ER4-U100
