Mirror Mount Bundle, 10D20ER.1 Broadband Aluminum Mirror & M1 Mount

The Mirror Mount is combined with the 10D20ER.1 mirror. The M1 mount coupled with the 10D20ER.1 mirror is an ideal packaged set for standard laboratory applications. Note that each item will be packaged separately for shipment.

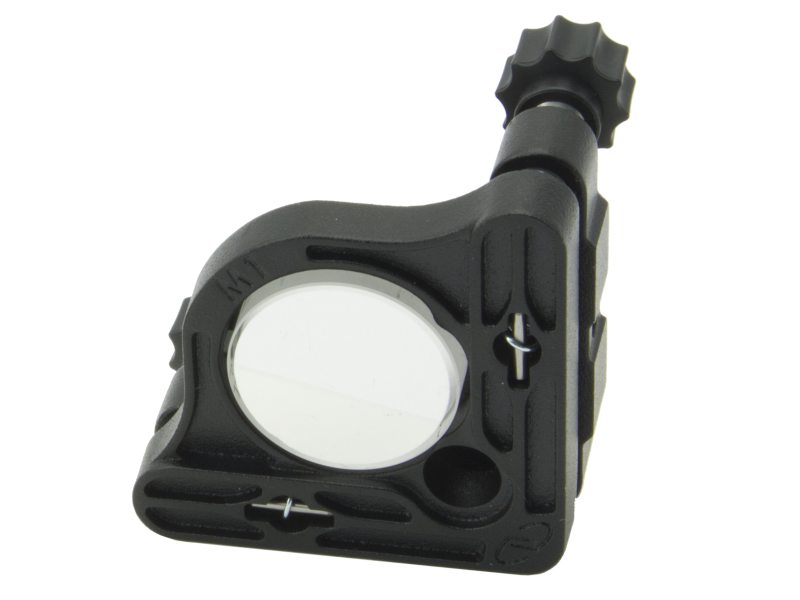

M1 is a standard laboratory mirror mount, 1.0 inch in Diameter, with 2 Knob Actuators. It is ideal for general purpose applications requiring a compact, robust, kinematic design at an economical price. The M1 is an aperture version for 1 inch (25.4 mm) diameter optics. UPA-series adaptors, which are compatible with the M1 mount, allow other various sizes and types of optics to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

The 10D20ER.1 Broadband Metallic Mirror is an excellent general purpose, broadband reflectors. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Borofloat® substrate. The ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450–700 nm. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
