Data Link, DMH-1 Digital Micrometer, USB Interface
Data Link, DMH-1 Digital Micrometer, USB Interface
Model: DMH-DL-U
Product Series Overview

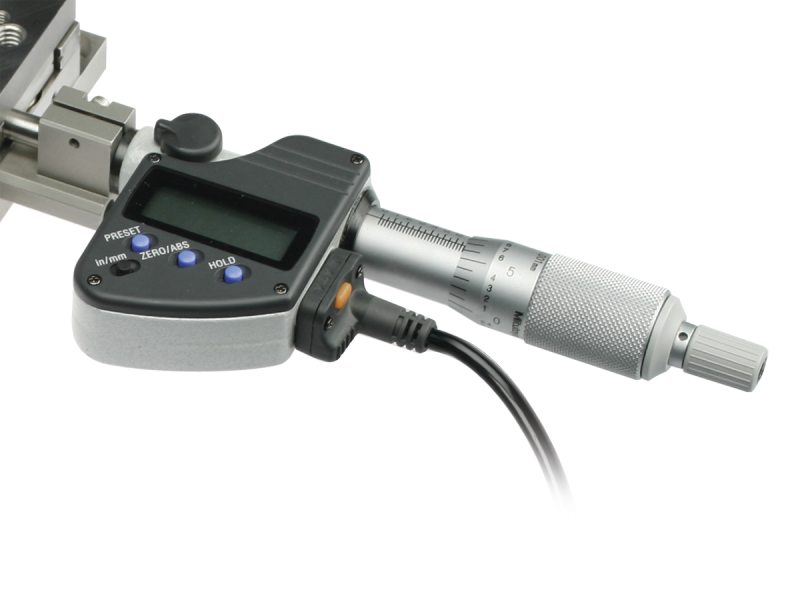

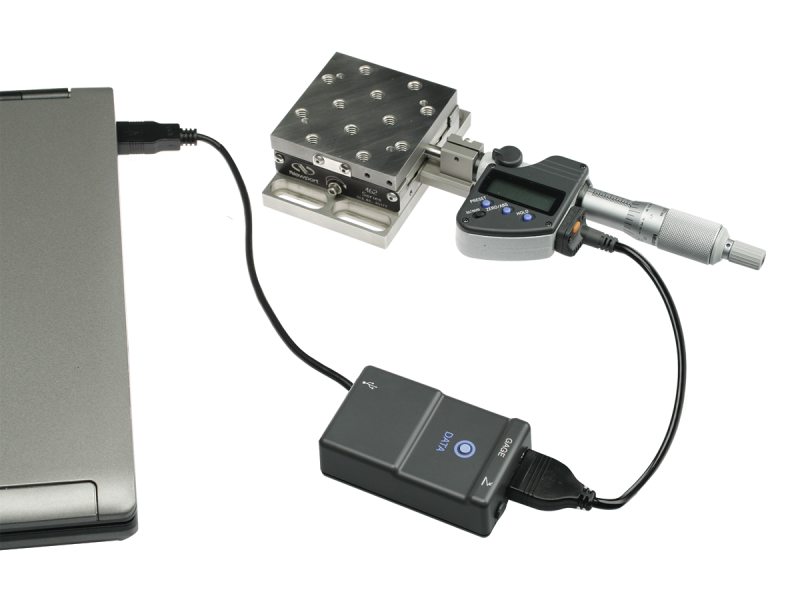

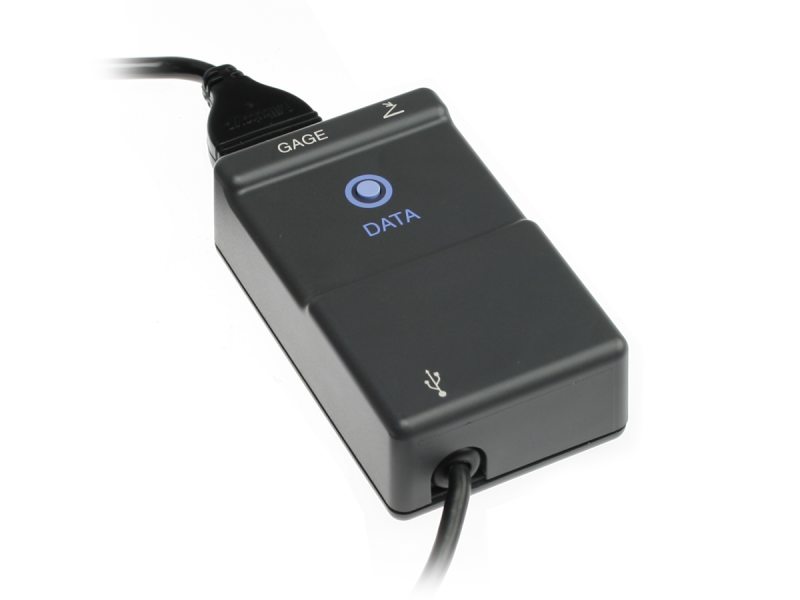

Digital Micrometer HeadThe DMH-DL-U Data Link allows users of the DMH-1 Digital Micrometer to quickly and accurately transfer the numerical data, in electronic format, to a spreadsheet or word processor. Data from the digital micrometer is transferred with a simple button push on either the connecting cable or the electronic box as shown on the drawing. The Data Link, which includes a Micrometer Connecting Cable and an Input Tool, requires no batteries and runs off of the power supplied by the computers USB socket.
Resources & Downloads
2D Product Drawings
Data_link-DMH-1(96.9 kB, PDF)
Other
DMH-DL-U_RoHS2021.pdf(679.9 kB, PDF)
