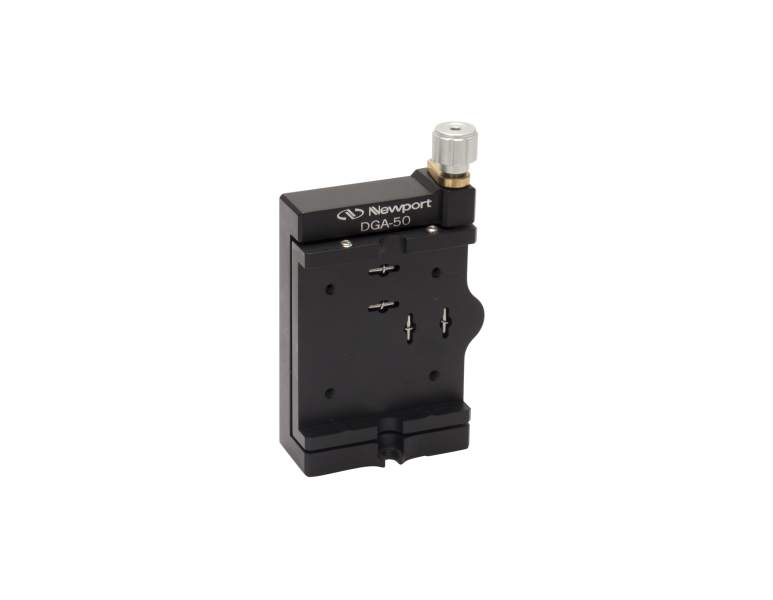

Diffraction Grating Mount, 50 mm, 3-axis

Technical Specs

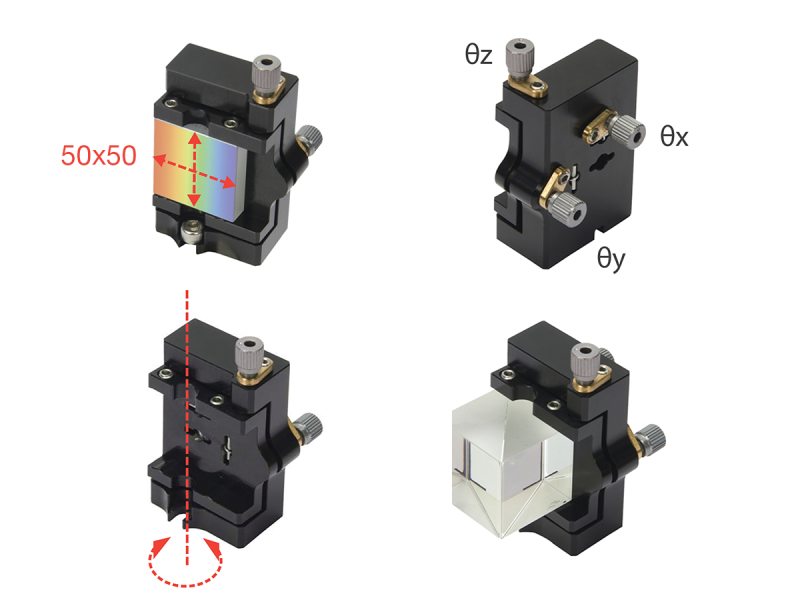

  • Adjustments
    θx, θy, θz
  • Drive Type
    Knob, locking
  • Adjustment Screw Thread
    100 TPI
  • Angular Range
    ±2°
  • Tip/Tilt Sensitivity
    10 arc sec
  • Rotation Sensitivity
    7.16 arc sec
  • Optic Thickness
    6 mm
  • Optical Axis Height
    38.1 mm
  • Material
    Anodized Aluminum
  • Weight
    0.2 kg
