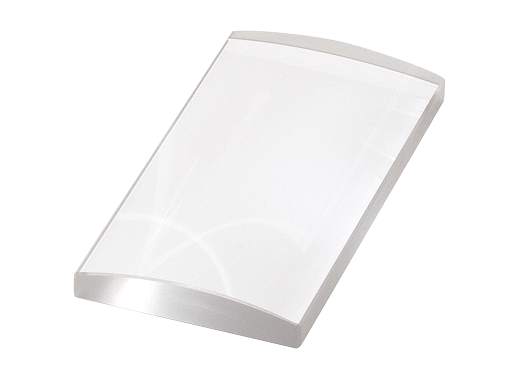

Cylindrical Lens, Plano-Convex, 50.8x25.4 mm, 100 mm FL, FS, 245-440 nm

UV Coated UVFS Plano-Convex Cylindrical Lenses

The CSX100AR.10 Plano-Convex Cylindrical Lens is a 245 to 440 nm anti-reflection coated, fused silica, plano-convex cylindrical lens with a 2 inch (50.8 mm) length, a 1 inch (25.4 mm) width and an effective focal length of 100 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision cylindrical lenses are polished to tight tolerances to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

Specifications

Technical Specs

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Size
50.8 x 25.4 mm
Center Thickness (Tc)
4.79 mm
Edge Thickness (Te)
3 mm
Lens Material
UV Grade Fused Silica
Antireflection Coating
245-440 nm
Coating Code
AR.10
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/2-λ/4
Effective Focal Length (EFL)
100.0 mm
Back Focal Length (BFL)
92.98 mm
Thickness
4.79 mm
Principal Plane 2 (P2)
-7.02 mm

Radius of Curvature (R)
46.00 mm
Size Tolerance
±0.1 mm
Focal Length Tolerance
± 2.0%
Center Thickness Tolerance
+0.5/-0.25 mm
Edge Thickness Tolerance
±0.3 mm
Wedge
<1 mrad in X axis
Clear Aperture
≥central 80% of dimensions
Chamfers
0.5 mm face width
Chamfers Angle/Tolerance
45°, typical
f/Y
3.9
Cleaning
See How to Clean Optics

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Size
50.8 x 25.4 mm
Center Thickness (Tc)
4.79 mm
Edge Thickness (Te)
3 mm
Lens Material
UV Grade Fused Silica
Antireflection Coating
245-440 nm
Coating Code
AR.10
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/2-λ/4
Effective Focal Length (EFL)
100.0 mm
Back Focal Length (BFL)
92.98 mm
Thickness
4.79 mm
Principal Plane 2 (P2)
-7.02 mm

Radius of Curvature (R)
46.00 mm
Size Tolerance
±0.1 mm
Focal Length Tolerance
± 2.0%
Center Thickness Tolerance
+0.5/-0.25 mm
Edge Thickness Tolerance
±0.3 mm
Wedge
<1 mrad in X axis
Clear Aperture
≥central 80% of dimensions
Chamfers
0.5 mm face width
Chamfers Angle/Tolerance
45°, typical
f/Y
3.9
Cleaning
See How to Clean Optics

Resources & Downloads

Other

CSX100AR.10 RoHS Certificate(703.3 kB, PDF)
AR.10 Raw Data.xlsx(81.2 kB, XLSX)

2D Product Drawings

PLANOCO1 VEX-S(89.6 kB, PDF)
