Cylindrical Lens, Plano-Convex, 50.8x19 mm, 25.4 mm FL, FS, 245-440 nm

UV Coated UVFS Plano-Convex Cylindrical Lenses

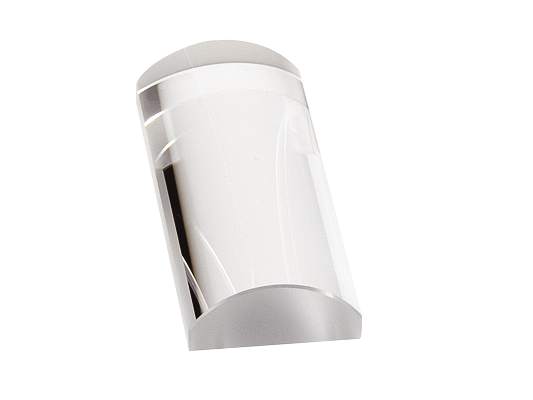

The CSX025AR.10 Plano-Convex Cylindrical Lens is a 245 to 440 nm anti-reflection coated, fused silica, plano-convex cylindrical lens with a 2 inch (50.8 mm) length, a 19.0 mm width and an effective focal length of 25.4 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision cylindrical lenses are polished to tight tolerances to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

Specifications

Technical Specs

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Size
50.8 x 19.05 mm
Center Thickness (Tc)
7.88 mm
Edge Thickness (Te)
3 mm
Lens Material
UV Grade Fused Silica

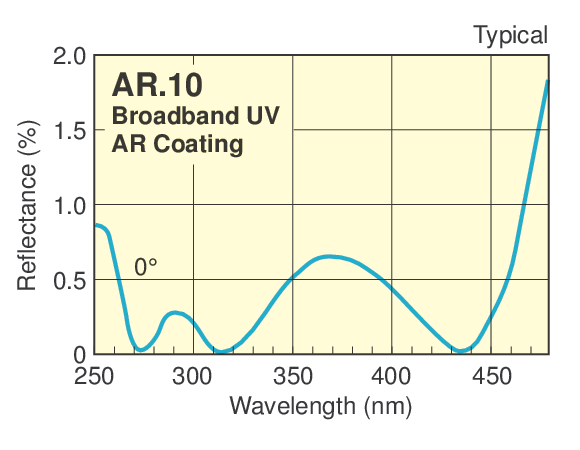

Antireflection Coating
245-440 nm
Coating Code
AR.10
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/2-λ/4
Effective Focal Length (EFL)
25.4 mm
Back Focal Length (BFL)
20.2 mm
Thickness
7.88 mm
Principal Plane 2 (P2)
-5.20 mm

Radius of Curvature (R)
11.68 mm
Size Tolerance
±0.1 mm
Focal Length Tolerance
± 2.0%
Center Thickness Tolerance
+0.5/-0.25 mm
Edge Thickness Tolerance
±0.3 mm
Wedge
<1 mrad in X axis
Clear Aperture
≥central 80% of dimensions
Chamfers
0.5 mm face width
Chamfers Angle/Tolerance
45°, typical
f/Y
1.3
Cleaning
See How to Clean Optics

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Size
50.8 x 19.05 mm
Center Thickness (Tc)
7.88 mm
Edge Thickness (Te)
3 mm
Lens Material
UV Grade Fused Silica
Antireflection Coating
245-440 nm
Coating Code
AR.10
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/2-λ/4
Effective Focal Length (EFL)
25.4 mm
Back Focal Length (BFL)
20.2 mm
Thickness
7.88 mm
Principal Plane 2 (P2)
-5.20 mm

Radius of Curvature (R)
11.68 mm
Size Tolerance
±0.1 mm
Focal Length Tolerance
± 2.0%
Center Thickness Tolerance
+0.5/-0.25 mm
Edge Thickness Tolerance
±0.3 mm
Wedge
<1 mrad in X axis
Clear Aperture
≥central 80% of dimensions
Chamfers
0.5 mm face width
Chamfers Angle/Tolerance
45°, typical
f/Y
1.3
Cleaning
See How to Clean Optics

Resources & Downloads

Other

CSX025AR.10 RoHS Certificate(705.4 kB, PDF)
AR.10 Raw Data.xlsx(81.2 kB, XLSX)

2D Product Drawings

PLANOCO1 VEX-S(89.6 kB, PDF)

Related Products

Compatible

Description	Compatibility	Avail.	Price
CYM-2RCylindrical Lens Mount, Adjustable, 50.8 mm Max, +/- 5 Deg., 2 arcs sec	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$215
CYM-2R-A19.0Cylindrical Lens Adapter, 19.0 mm Lens, CYM-2R Mount	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$54

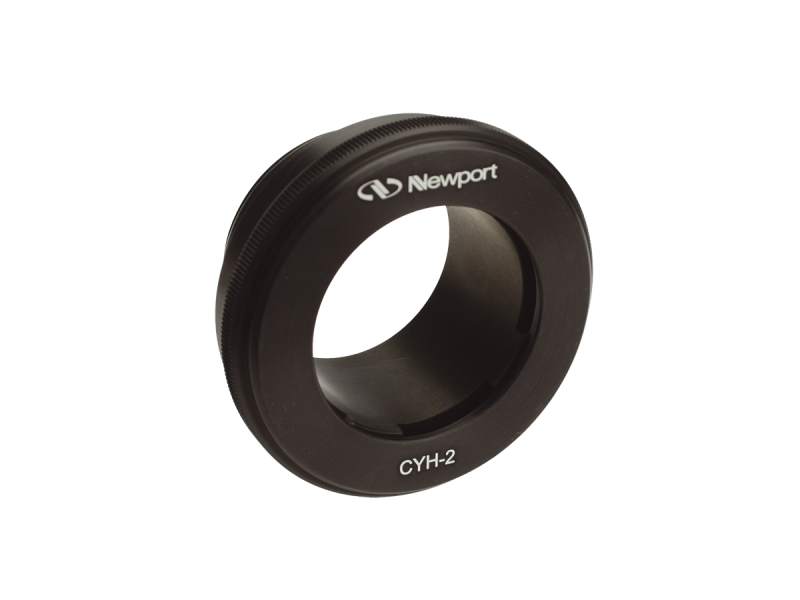

CYH-2Cylindrical Lens Holder, 2.0 in. x 0.75-1.0 in., 2.063-20 Threaded Mounts	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$277
