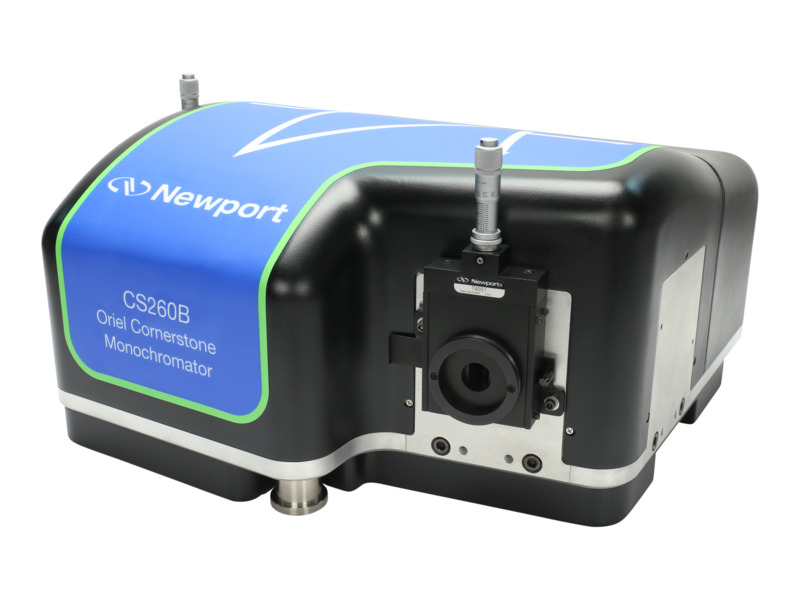

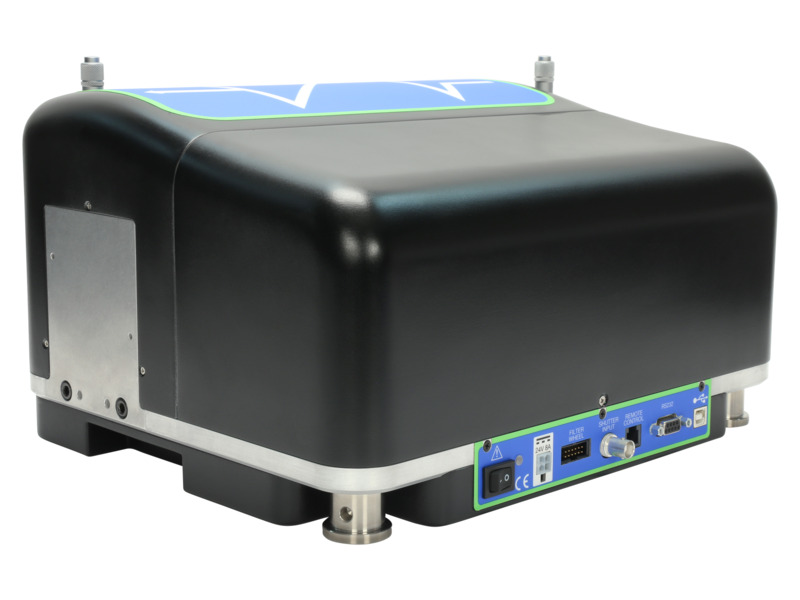

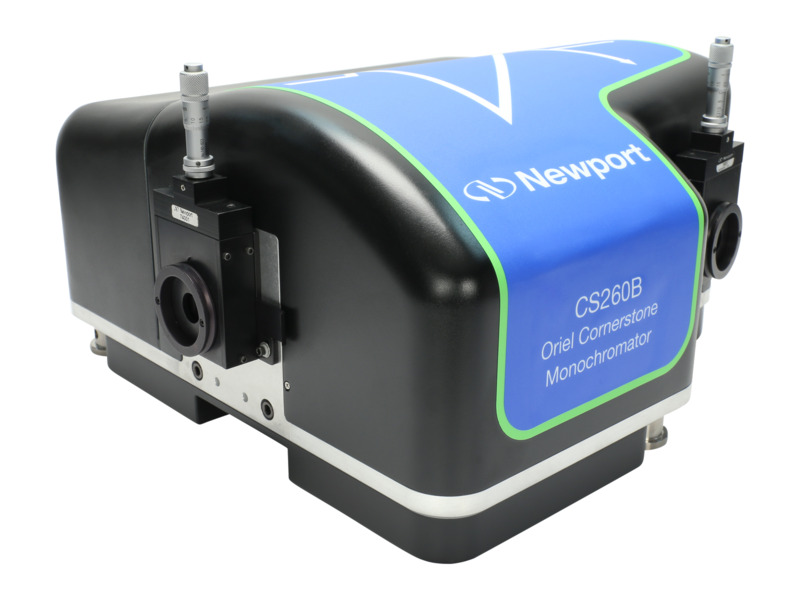

Monochromator, 1/4m, UV-NIR High Resolution Dual Grating, Micrometer Slits, Axial Output

  • Blaze Wavelength
    500 nm, 750 nm
  • Communication Interfaces
    USB 2.0 and RS232
  • Focal Length
    260 mm
  • Line Density
    1200 Lines/mm
  • Number of Ports
    2
  • Slits
    Micrometer Driven
  • Wavelength Range
    250-1200 nm
  • Wavelength Accuracy
    ±0.5 nm
  • Wavelength Precision
    ±0.075 nm
  • Stray Light
    0.01%
  • F/#
    F/3.9
  • Flange Series Size
    1.5 inch
  • Number of Gratings Supported
    2
  • Wavelength Selection Method
    Precision Motor
  • Optical Height
    3.53 inches (89.61 mm)
  • Weight
    21 lbs (9.5 kg)
  • Power Requirements
    100-240 VAC, 47-63 Hz
  • Grating Type
    Ruled
  • Reciprocal Dispersion
    3.43 nm/mm. 3.22 nm/mm
