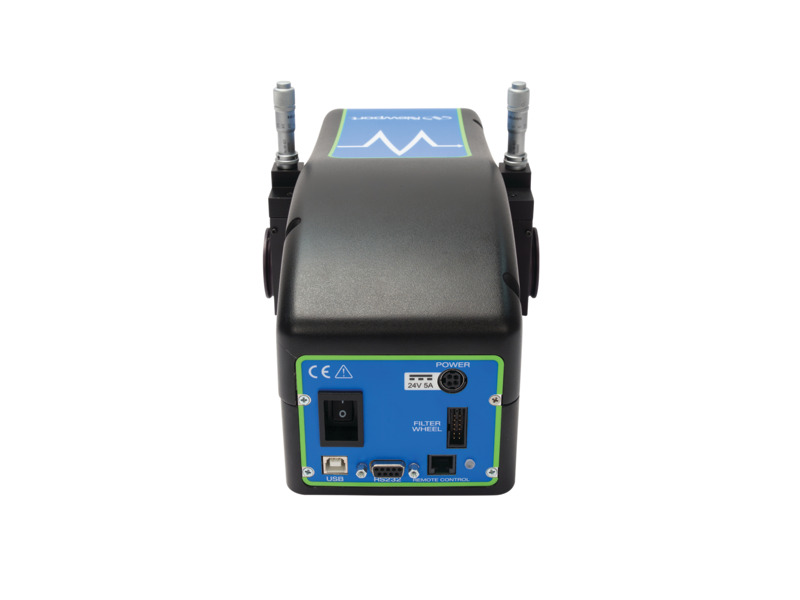

Monochromator, 1/8 m, Near IR, Micrometer Slits

  • Blaze Wavelength
    1000 nm, 2000 nm
  • Communication Interfaces
    USB 2.0 and RS232
  • Focal Length
    150 mm
  • Line Density
    600 and 300 lines/mm
  • Number of Ports
    2
  • Slits
    Micrometer Driven
  • Wavelength Range
    600-2200 nm
  • Wavelength Accuracy
    ±0.5 nm with 600 L/mm grating; ±1 nm with 300 L/mm grating
  • Wavelength Precision
    ±0.15 nm with 600 L/mm grating; ±0.3 nm with 300 L/mm grating
  • Stray Light
    0.03%
  • F/#
    F/3.9
  • Flange Series Size
    1.5 inch
  • Number of Gratings Supported
    2
  • Wavelength Selection Method
    Motorized
  • Optical Height
    1.4 inches (36 mm)
  • Weight
    12.0 lbs. [5.4 kg]
  • Power Requirements
    100-240 VAC, 47-63 Hz
  • Grating Type
    Ruled
  • Reciprocal Dispersion
    10.6 nm/mm with 600 L/mm grating; 21.2 nm/mm with 300 L/mm grating
