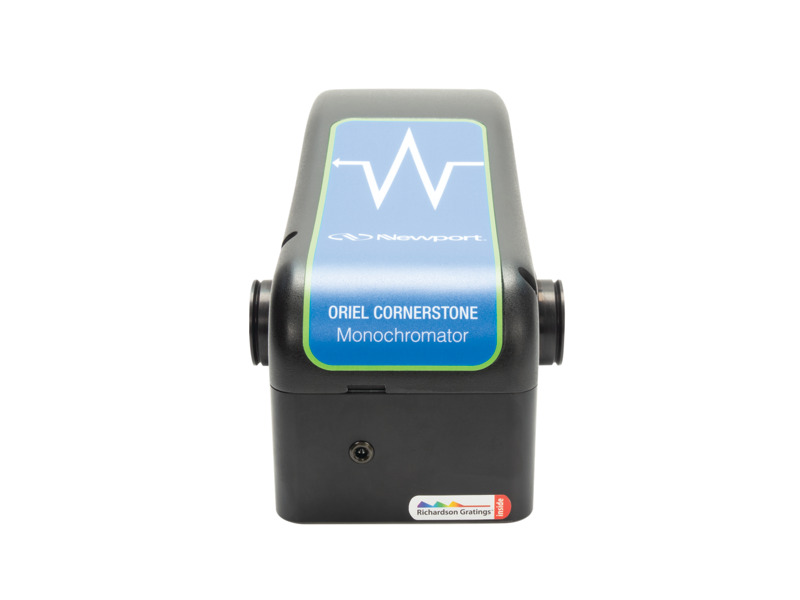

Monochromator, CS130B, 1/8 m, Extended Range, Fixed Slits

Technical Specs

  • Blaze Wavelength
    400 nm, 1000 nm
  • Communication Interfaces
    USB 2.0 and RS232
  • Focal Length
    130 mm
  • Line Density
    600 lines/mm
  • Number of Ports
    2
  • Slits
    Fixed Slit Holders
  • Wavelength Range
    300-2200 nm
  • Wavelength Accuracy
    ±0.5 nm
  • Wavelength Precision
    ±0.15 nm
  • Stray Light
    0.03%
  • F/#
    F/3.9
  • Flange Series Size
    1.5 inch
  • Number of Gratings Supported
    2
  • Power Requirements
    100-240 VAC, 47-63 Hz
  • Grating Type
    Ruled
  • Reciprocal Dispersion
    11 nm/mm with Grating 1; 10.6 nm/mm with Grating 2
