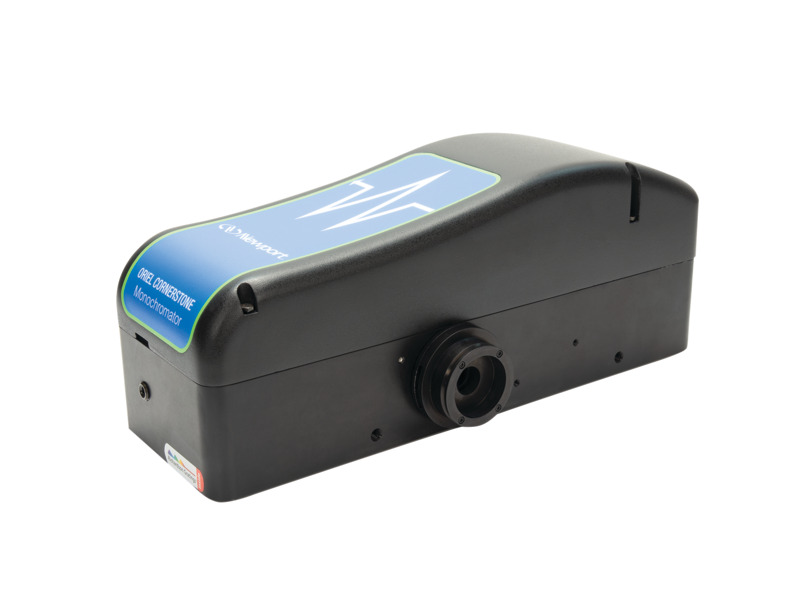

Monochromator, CS130B, 1/8 m, Holographic, Fixed Slits

Technical Specs

  • Blaze Wavelength
    250 nm, 500 nm
  • Communication Interfaces
    USB 2.0 and RS232
  • Focal Length
    130 mm
  • Line Density
    1200 and 1800 lines/mm
  • Number of Ports
    2
  • Slits
    Fixed Slit Holders
  • Wavelength Range
    200-1000 nm
  • Wavelength Accuracy
    ±0.25 nm with 1200 L/mm grating; ±0.18 nm with 1800 L/mm grating
  • Wavelength Precision
    ±0.075 nm with 1200 L/mm grating; ±0.05 nm with 1800 L/mm grating
  • Stray Light
    0.03%
  • F/#
    F/3.9
  • Flange Series Size
    1.5 inch
  • Number of Gratings Supported
    2
  • Power Requirements
    100-240 VAC, 47-63 Hz
  • Grating Type
    Holographic
  • Reciprocal Dispersion
    5.5 nm/mm with 1200 L/mm grating; 3.3 nm/mm with 1800 L/mm grating
