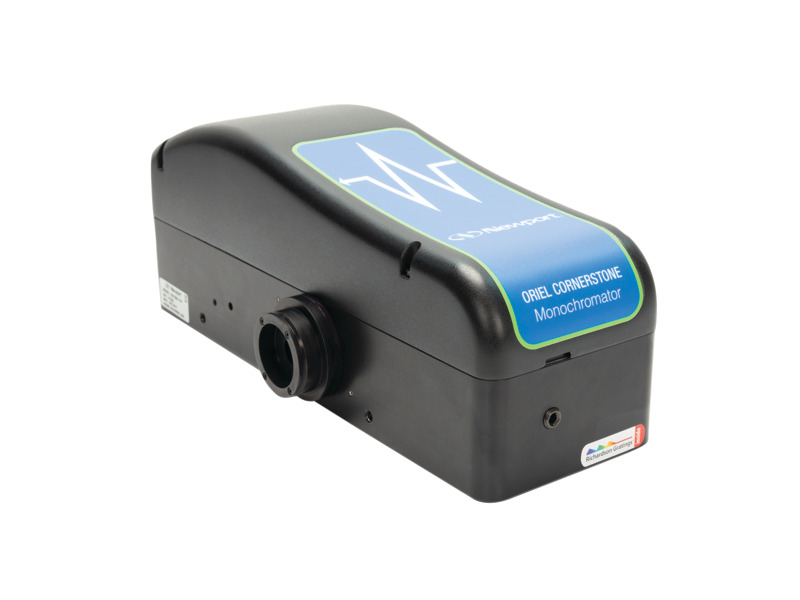

Monochromator, CS130B, 1/8 m, High Resolution, Fixed Slits

Technical Specs

  • Blaze Wavelength
    240 nm, 500 nm
  • Communication Interfaces
    USB 2.0 and RS232
  • Focal Length
    130 mm
  • Line Density
    2400 and 1200 lines/mm
  • Number of Ports
    2
  • Slits
    Fixed Slit Holders
  • Wavelength Range
    200-1200 nm
  • Wavelength Accuracy
    ±0.15 nm with 2400 L/mm grating; ±0.25 nm with 1200 L/mm grating
  • Wavelength Precision
    ±0.0375 nm with 2400 L/mm grating; ±0.075 nm with 1200 L/mm grating
  • Stray Light
    0.03%
  • F/#
    F/3.9
  • Flange Series Size
    1.5 inch
  • Number of Gratings Supported
    2
  • Wavelength Selection Method
    Motorized
  • Weight
    12.0 lbs. [5.4 kg]
  • Power Requirements
    100-240 VAC, 47-63 Hz
  • Grating Type
    Ruled
  • Reciprocal Dispersion
    2.7 nm/mm with 2400 L/mm grating; 5.3 nm/mm with 1200 L/mm grating
