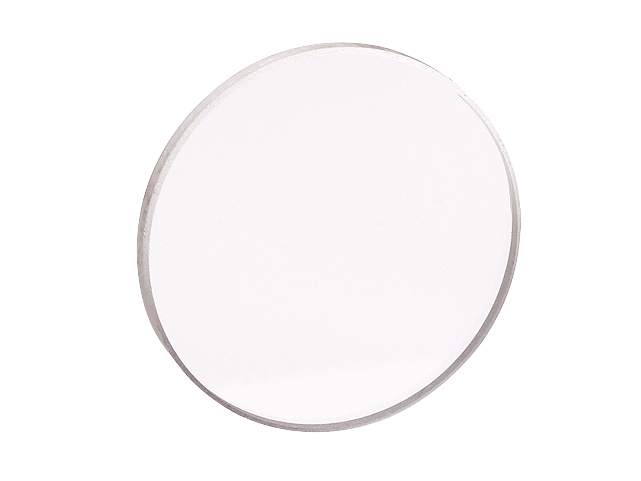

Optical Window, Calcium Fluoride, 40.0 mm Dia., 3.0 mm thick, Uncoated

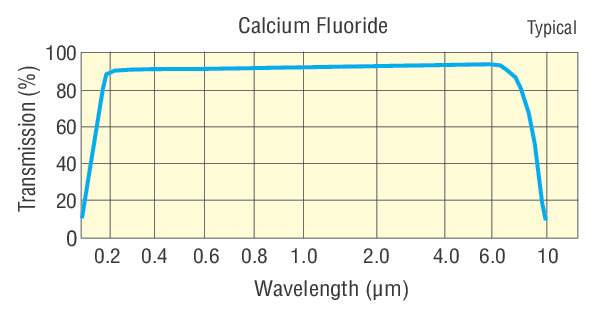

The CAW18 is a 40.0 mm in diameter and 3.0 mm thick Calcium Fluoride window. Calcium fluoride has a wide spectral range with high transmission (above 90%) between 0.25 μm and 7 μm, making it an excellent choice for deep UV to IR applications. CaF₂ is also an ideal choice for excimer laser optics due to its low absorption and high damage threshold. For selected applications CaF₂ can also be used without an anti-reflective coating as it has a low index of refraction leading to a low refracted light from the second surface.

Specifications

Technical Specs

Diameter
40.0 mm
Material
Vacuum UV Grade Calcium Fluoride
Antireflection Coating
Uncoated
Surface Flatness
λ/2 @ 632.8 nm
Surface Quality
40-20 scratch-dig
Thickness
3.0 mm
Thickness Tolerance
± 0.1 mm

Parallelism
< 1 arc minute
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0.0/-0.1 mm
Wavelength Range
250-7000 nm

Diameter
40.0 mm
Material
Vacuum UV Grade Calcium Fluoride
Antireflection Coating
Uncoated
Surface Flatness
λ/2 @ 632.8 nm
Surface Quality
40-20 scratch-dig
Thickness
3.0 mm
Thickness Tolerance
± 0.1 mm

Parallelism
< 1 arc minute
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0.0/-0.1 mm
Wavelength Range
250-7000 nm

Resources & Downloads

Software

CAW18 Zemax File(5.2 kB, ZMX)

Other

CAW18 RoHS Certificate(702.6 kB, PDF)

2D Product Drawings

90040232A.pdf(65.7 kB, PDF)
