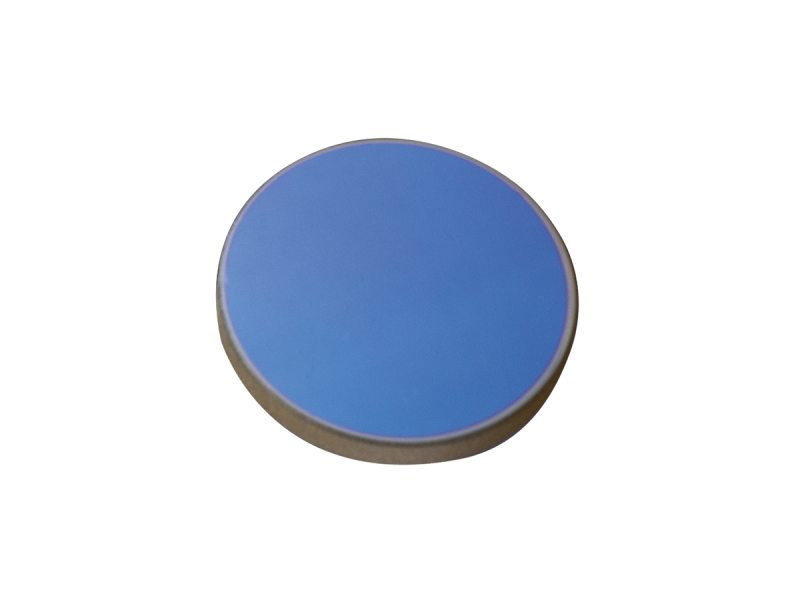

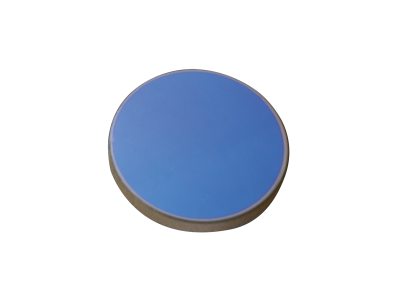

IR Beamsplitter, Calcium Fluoride, 38.1 mm, 50R/50T Ratio

The CAFBS11 IR Beamsplitter is a 38.1 mm diameter, 3.00 mm thick Calcium Fluoride beamsplitter with 50/50 reflection/transmission ratio optimized for 45° angle of incidence. This beamsplitter is designed for broadband infrared applications covering spectral range from 2 to 8 μm. The back surface of the beamsplitter has a 3 arc minutes wedge to reduce undesired interference effects caused by the back reflections from both surfaces of the optics.

Specifications

Technical Specs

Wavelength Range
2-8 µm
Diameter
38.1 mm
Material
Calcium Fluoride
Coating Second Surface
Uncoated
Angle of Incidence
45°
Reflection
50 ±10%

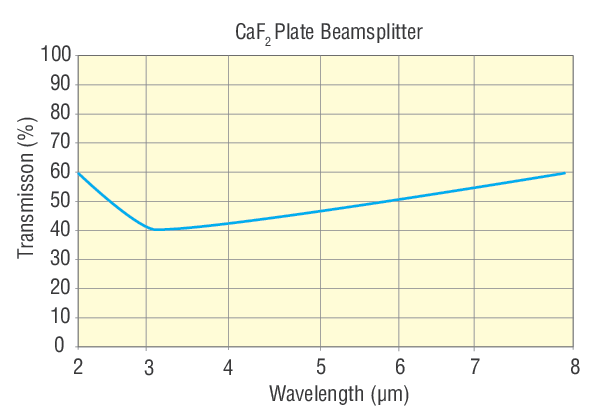

Transmission
50 ±10%
Surface Flatness
≤2 λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig

Diameter Tolerance
+0.00/-0.13 mm
Thickness
3.0 mm
Thickness Tolerance
± 0.13 mm
Parallelism
3 arc minutes
Clear Aperture
> central 85% of diameter
Cleaning
See How to Clean Optics

Wavelength Range
2-8 µm
Diameter
38.1 mm
Material
Calcium Fluoride
Coating Second Surface
Uncoated
Angle of Incidence
45°
Reflection
50 ±10%
Transmission
50 ±10%
Surface Flatness
≤2 λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig

Diameter Tolerance
+0.00/-0.13 mm
Thickness
3.0 mm
Thickness Tolerance
± 0.13 mm
Parallelism
3 arc minutes
Clear Aperture
> central 85% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

Other

CAFBS11 RoHS Certificate(703.1 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price

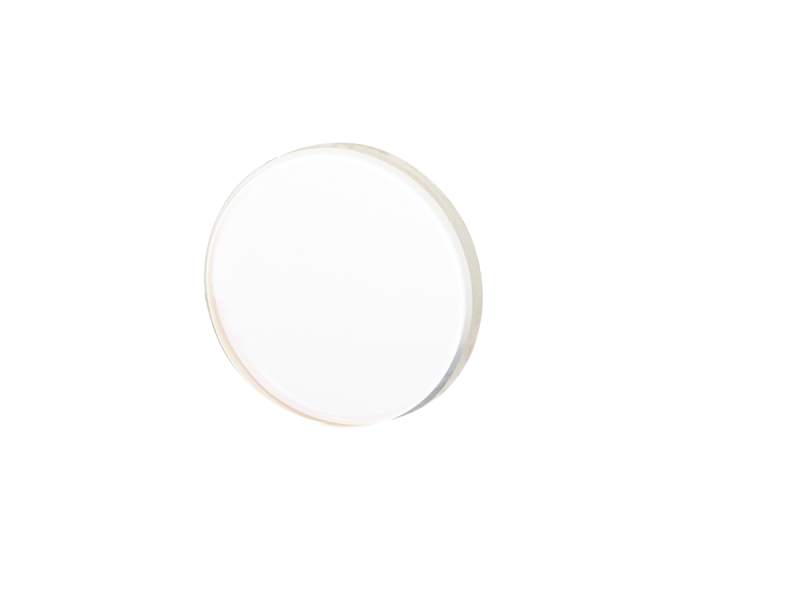

10RQ00UB.2Ultrafast Laser Beamsplitter, S Polarized, 25.4 mm, 700-950 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$589
