Fixed Periscope, 6.6 in. Height, 1 in. Mirrors, Magnetic Pedestal Base

Model: BSD-F

$288

In Stock

Compare

Add to List

Product Series Overview

Fixed Periscopes

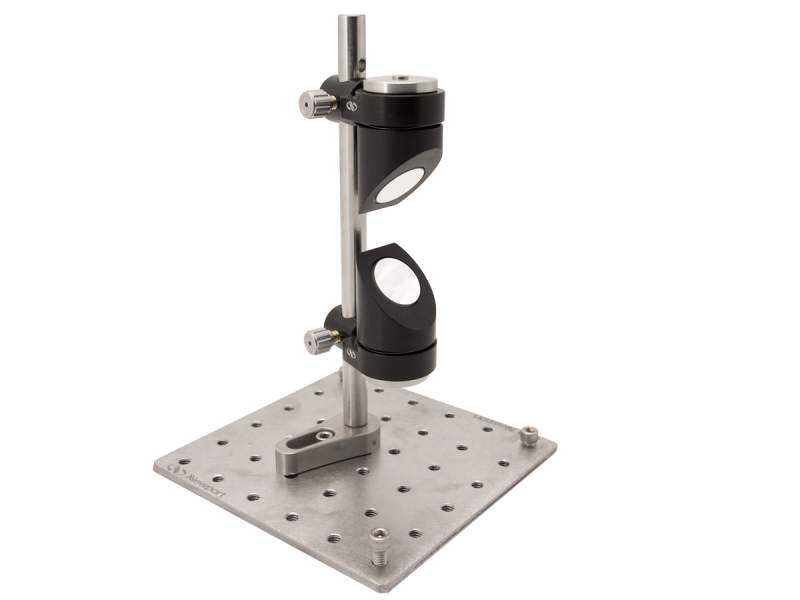

The BSD-F provides basic vertical height adjustment and 360 degrees of steering for optical beams. It features captive 1-in mirror holders that will not fall out during manual rotational adjustment, a magnetic pedestal base for safe handling, and height adjustment without tools all in a simple, low-cost design. Mirrors are sold separately.

Specifications

Technical Specs

Type

Fixed Periscope
Optic Diameter

25.4 mm

Optical Axis Height

54 to 168 mm

Type

Fixed Periscope
Optic Diameter

25.4 mm

Optical Axis Height

54 to 168 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BSD-F-313 (111.4 kB, PDF)

Other

BSD-F RoHS Certificate (278.3 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40

Similar

Description	Compatibility	Avail.	Price
BSD-F Fixed Periscope, 6.6 in. Height, 1 in. Mirrors, Magnetic Pedestal Base	UNIVERSAL	In Stock	$288
670-RCT-M Beam Steering Accessory, Top, SM Micrometers	UNIVERSAL	In Stock	$714
670-RCT Beam Steering Accessory, Top, Precision AJS Screws	UNIVERSAL	Show	$629

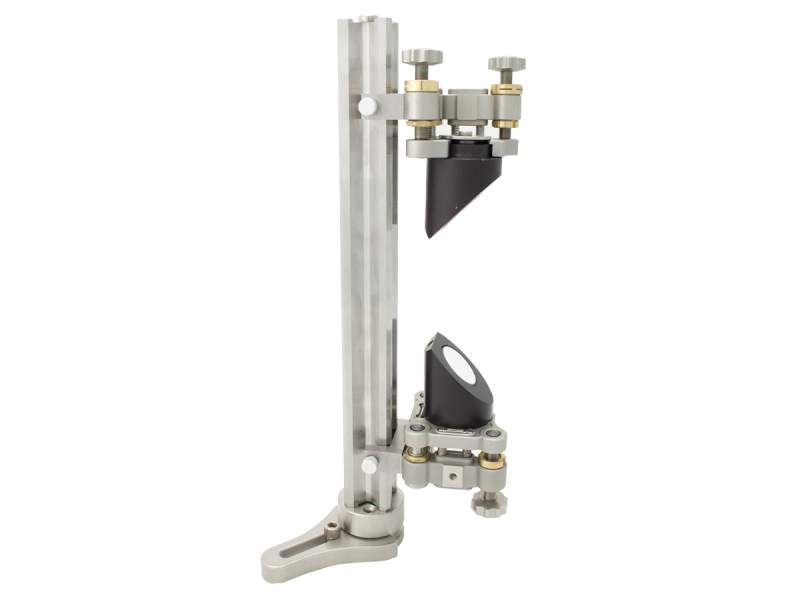

BSD-2R Rail Periscope, 8.9 in. Height, 1 in. Mirrors, Magnetic Pedestal Base	UNIVERSAL	In Stock	$845
670-RCB Beam Steering Accessory, Bottom	UNIVERSAL	In Stock	$258

Compatible

Description	Compatibility	Avail.	Price
TRA12PPD Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	In Stock	$1,042
TRA12CC Motorized Actuator, Miniature, 12 mm Travel, DC Servo motor	UNIVERSAL	In Stock	$1,042
SP-6 Optical Post, 6 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	In Stock	$8
BSC-FMB Optic Mount, Beam Steering, Fixed Periscope, Bottom	UNIVERSAL	In Stock	$147
BSC-P Magnetic Post, Fixed Pedestal	UNIVERSAL	Show	$42
BSC-FMT Optic Mount, Beam Steering, Fixed Periscope, Top	UNIVERSAL	In Stock	$143
