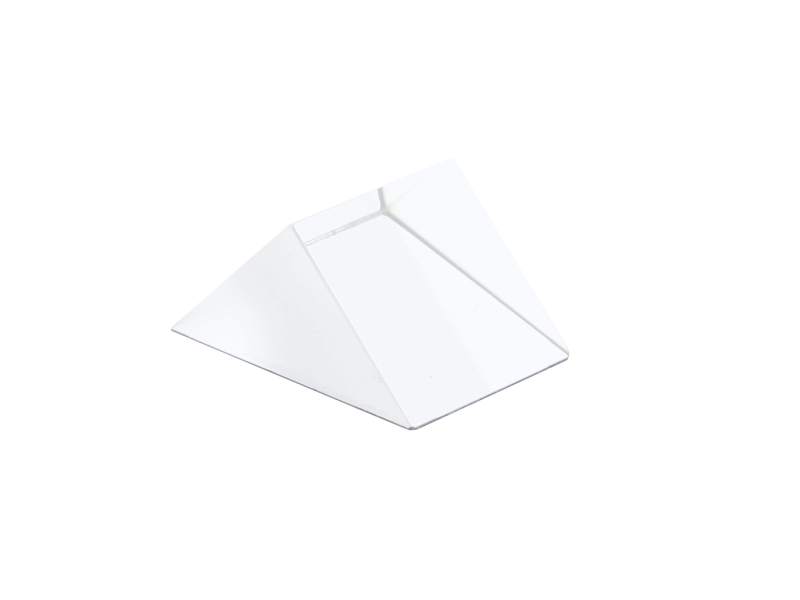

Right-Angle Prism, N-BK7, 30 mm, λ/8, Aluminum Hypotenuse

The BRAP18-A High Tolerance Right-Angle Prism is precision polished to tight tolerances for more demanding applications. This protective aluminum coated hypotenuse, N-BK7 prism dimension is 1.18 x 1.18 x 1.18 inch (30.0 x 30.0 x 30.0 mm). It has a λ/8 surface flatness and a 40-20 surface quality. This prism is recommended for general laboratory use in the visible range. By means of total internal reflection (TIR), a right-angle prism may be used as a 90° reflector or as a 180° retroreflector. Except for reflection losses from the entry and exit faces, TIR exhibits 100% reflectivity over a very large wavelength range.

Specifications

Technical Specs

Size
30.0 mm
Material
N-BK7
Coating Type
Protected Aluminum Hypotenuse
Coating Code
A
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/8 at 632.8 nm
Hypotenuse
42.40 mm

Angle Tolerance
± 15 arc seconds
Size Tolerance
+0.00/-0.10 mm
Chamfers
0.3 mm face width
Chamfers Angle Tolerance
45°
RoHS
Compliant

Size
30.0 mm
Material
N-BK7
Coating Type
Protected Aluminum Hypotenuse
Coating Code
A
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/8 at 632.8 nm
Hypotenuse
42.40 mm

Angle Tolerance
± 15 arc seconds
Size Tolerance
+0.00/-0.10 mm
Chamfers
0.3 mm face width
Chamfers Angle Tolerance
45°
RoHS
Compliant

Resources & Downloads

Other

BRAP18-A RoHS Certificate(706.1 kB, PDF)

2D Product Drawings

PRISM-DWG.pdf(89.5 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price

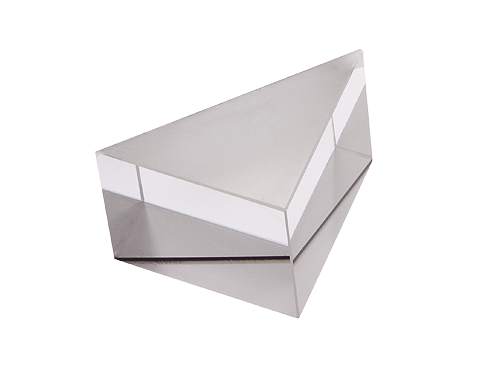

BRP-30-ARight-Angle Prism, ValuMax, N-BK7, 30.0 mm, Aluminized Hypotenuse	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$107
