Sorry, this product is no longer offered for sale. The recommended replacement product is BPH-2.

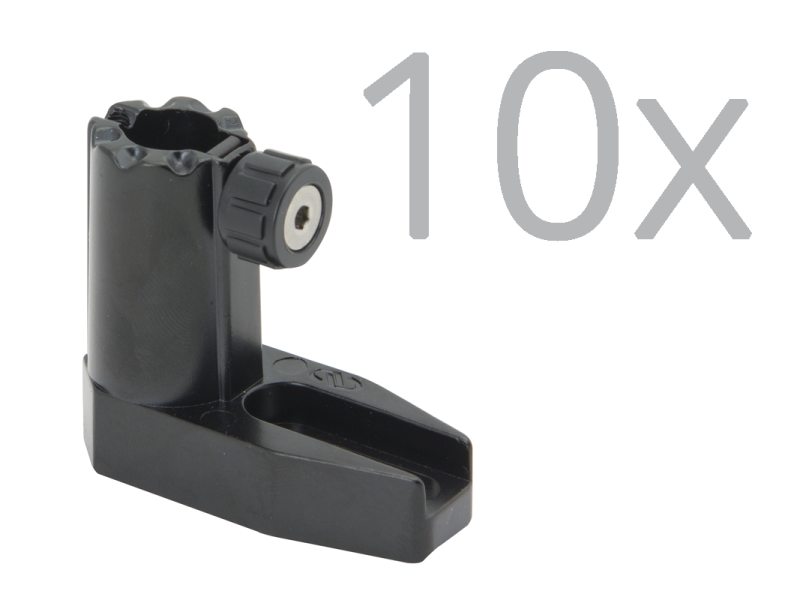

Optical Post Holder Pack, Slotted-Base, 2 in. Height, 0.5 in. Posts, Qty 10
The BPH-2 Slotted-Base Post Holder is a patent pending re-invention of the classical optical post holder, combining a slim slotted base with a unique post holder. The top surface of the post holder has a series of kinematic indentations which, when used with the BPH-C-5 Post Collar, provide repeatable rotational alignment and indexing at 45° increments. The base features both angled and straight reference surfaces allowing edge-to-edge placement of adjacent post holders and, with the addition of the BPH-XB-5 Base Extender, can convert to a double-slotted base. The flat bottom also makes mounting more versatile and improves stability.
Specifications
- TypeSlotted Base Post Holder
- Height50.8 mm
- Thread Type1/4-20 (M6) Slot
- MaterialCast Aluminum
- Pack Quantity10
- Inside Diameter12.7
Resources & Downloads
Other
BPH-2PK RoHS Certificate(277.6 kB, PDF) BPH-2PK_RoHS2021.pdf(681.4 kB, PDF)
