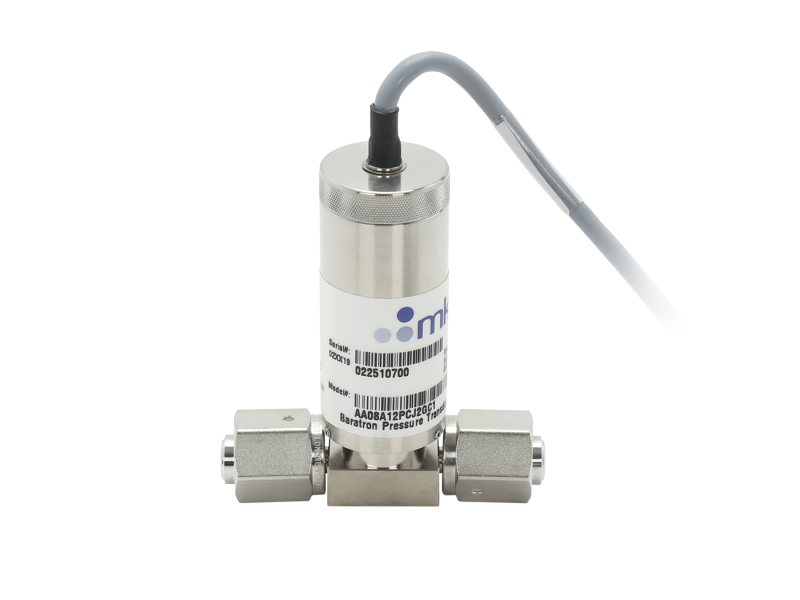

Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, DB15
Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, DB15
Model: AA08A12PCJ2GC1
Specifications
- TypePressure Transducer
- Measurement TypeAbsolute
- ConfigurationFlow-through
- Full Scale Pressure Range100 psia
- Accuracy1.0% of Reading
- Zero Temperature Coefficient0.02% of Full Scale/°C
- Span Temperature Coefficient0.04% of Reading/°C
- Operating Temperature Range0 - 50°C
- Overpressure Limit150 psia
- Burst Pressure1,000 psia
- Exposed MaterialsIncoloy®
- Power Requirements13 - 32 VDC
- Analog Output0 - 10 VDC
- Electrical Connector15-pin HD on 9 in. lead
- Fitting Type4 VCR female
- Fitting Face to Face Length2.95 in.
- Surface Finish<5 µin Ra
- CE CertifiedYes
- DisplayNo
