Baseplate, 2.25 in. Width, 1/4-20 (M6) and 8-32 (M4) Counterbored Slots

Aluminum Slotted Bases

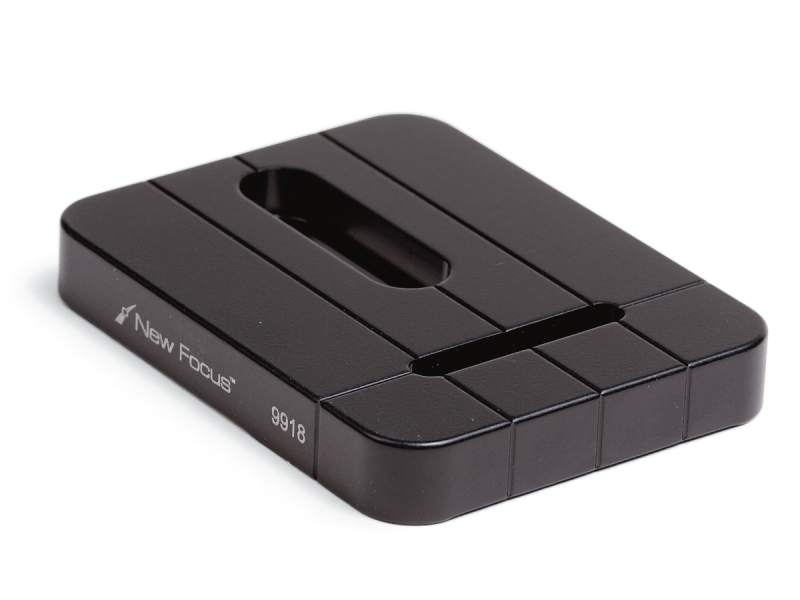

The 9918 Baseplate makes it easy to reach a mounting hole on a conventional optical table that has a 2.25 in. or 57.2 mm mounting-hole array.

Specifications

Technical Specs

Type
Slotted Base
Length
73.8 mm
Width
57.2 mm
Height
10.4 mm

Thread Type
8-32 (M4) and 1/4-20 (M6) CLR
Material
Aluminum

Type
Slotted Base
Length
73.8 mm
Width
57.2 mm
Height
10.4 mm

Thread Type
8-32 (M4) and 1/4-20 (M6) CLR
Material
Aluminum

Resources & Downloads

2D Product Drawings

9918_RC_a(473.7 kB, PDF)

Other

907129_RoHS2021.pdf(685.5 kB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
