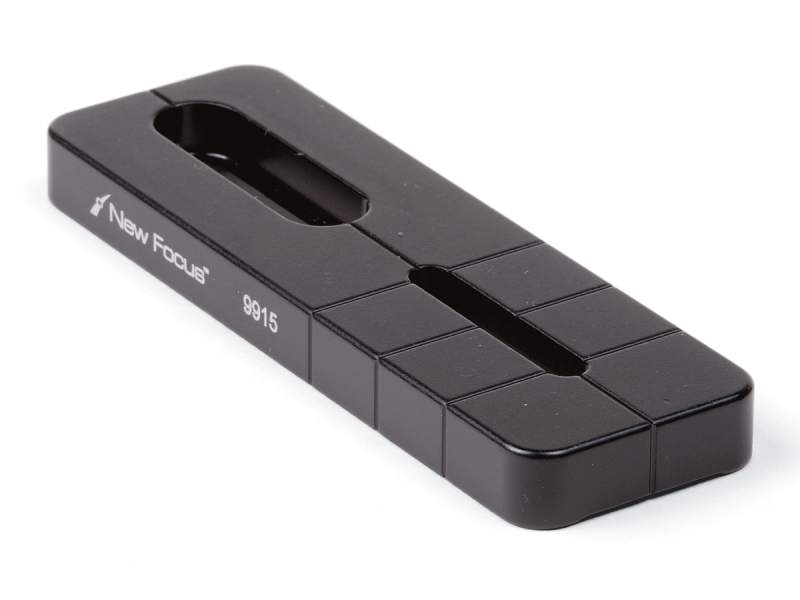

Baseplate, 1.25 in. Width, 1/4-20 (M6) and 8-32 (M4) Counterbored Slots

Baseplate, 1.25 in. Width, 1/4-20 (M6) and 8-32 (M4) Counterbored Slots

Model: 9915

$28

In Stock

Compare

Add to List

Product Series Overview

Aluminum Slotted Bases

The 9915 Baseplate makes it easy to reach a mounting hole on a conventional optical table that has a 1.25 in. or 31.8 mm mounting-hole array.

Specifications

Technical Specs

Type

Slotted Base
Length

98.7 mm
Width

31.8 mm
Height

9.1 mm

Thread Type

8-32 (M4) and 1/4-20 (M6) CLR
Material

Aluminum

Type

Slotted Base
Length

98.7 mm
Width

31.8 mm
Height

9.1 mm

Thread Type

8-32 (M4) and 1/4-20 (M6) CLR
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9915_RC_a (468.1 kB, PDF)

Other

907128_RoHS2021.pdf (688.3 kB, PDF)
