Flipper Optic Mount, 2.0 in. Optic Diameter, M4

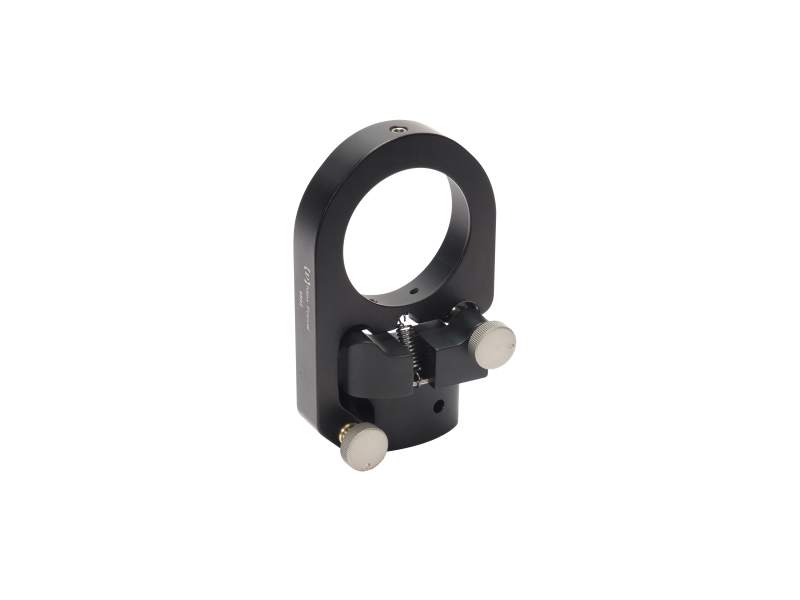

The 9892-M Flipper Optic Mount adds a hinge to a traditional 2.0 inch optic mount. The result is a mount that lets you move an optic into and out of your beam path easily and repeatably. Ideal for turning mirrors in multiplexed laser experiments, this mount eliminates many of the headaches associated with sharing a laser. Adjustment screws let you steer your beam, while a sapphire pad under the screw gives you better than 200-μrad repeatability between flips.
Resources & Downloads
2D Product Drawings
9892b-Drawing(108.8 kB, PDF)
