Mirror Mount, Pint-Sized, Corner, 0.5 in., 3 Knobs

Mirror Mount, Pint-Sized, Corner, 0.5 in., 3 Knobs

Model: 9883

$176.00

In Stock

Compare

Add to List

Product Series Overview

New Focus Corner Mirror Mounts

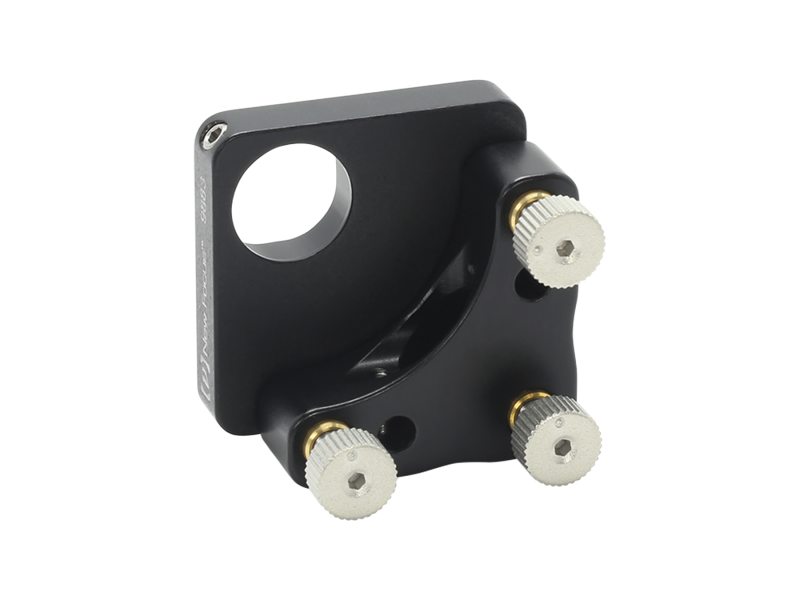

The 9883 Pint Sized Corner Mirror Mount holds 0.5 in. diameter optics, and is only half the size of our Classic mounts, yet provides the same high level of performance you've come to count on. With a 1.0 in. beam height, and 8-32 (M4) mounting holes, this anodized-aluminum mount is completely compatible with all the other mounts, posts, and pedestals you already own.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

12.7 mm
Number of Actuators

3
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

z, θx, θy
Sensitivity

8.8 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Mechanism

Kinematic
Optic Diameter

12.7 mm
Number of Actuators

3
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

z, θx, θy
Sensitivity

8.8 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9883d-Drawing (97 kB, PDF)

Other

MKS EU RoHS3 Cert for NF Mounts - Exemption 6A (57.8 kB, PDF)
