Mirror Mount, Stability, Top Adjust, 1.0 in., Thick, 2 Knobs

Model: 9814-8

$490

In Stock

Compare

Add to List

Product Series Overview

Low Wavefront Distortion Top Adjust Mounts

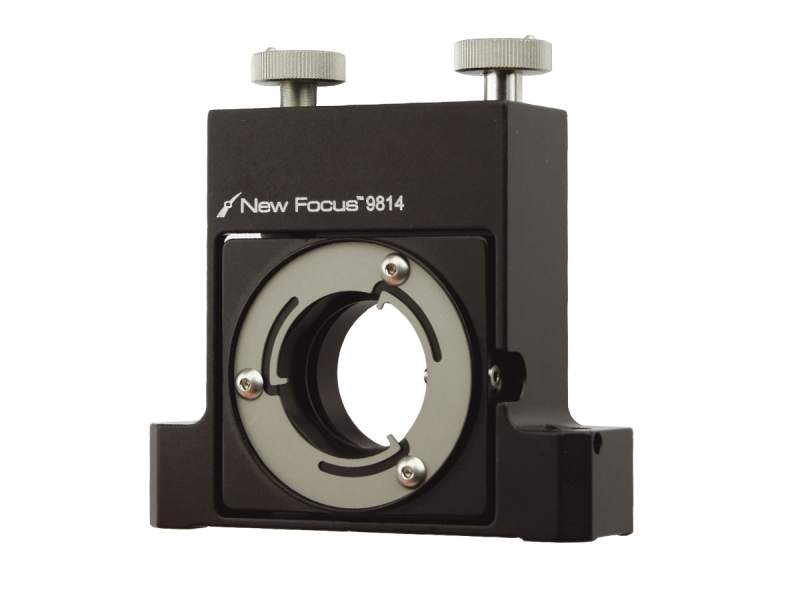

The 9814-8 Stability Series Top Actuated Mirror Mount builds upon the New Focus™ tradition of manufacturing outstanding kinematic mounts that use the best knob actuated adjustment screws and sapphire seats. This Black Anodized 1.0 inch (25.4 mm) diameter mount has a unique retention system for 8.0 mm thick mirrors providing further performance enhancement. Designed originally for precision UV beamsteering applications in the demanding UV semiconductor capital-equipment industry, the retention system optimizes stability while minimizing wavefront distortion, ensuring that the mirrors are truly flat and rock solid. Mirror installation and removal is simple and fast, requiring no adhesives. This top-actuated version in which all adjustments are accessed along the top, is ideal for use in compact spaces where access is limited.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Drive

Knob
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

4.3 arc sec
Angular Range

±4°

Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm
Optic Thickness

8.0 mm
Special Features

Low-Stress Mounting

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Drive

Knob
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

4.3 arc sec
Angular Range

±4°

Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm
Optic Thickness

8.0 mm
Special Features

Low-Stress Mounting

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9814a-Drawing (224.7 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
9947 Clamping Fork, Small Pedestal, Captive 1/4-20 Screw	IMPERIAL	In Stock	$30
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
BR42 Mounting Bridle, UTR80S to MVN80, TGN80 or UMR8, 0.22 in. Height, Qty 4	IMPERIAL	Show	$56
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
