Detector Model	Required Mounting Ring

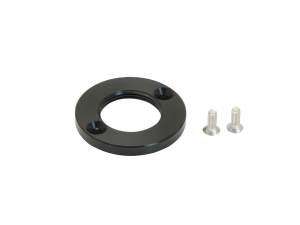

919P-030-18	919P-18FA
919P-040-50	919P-50FA

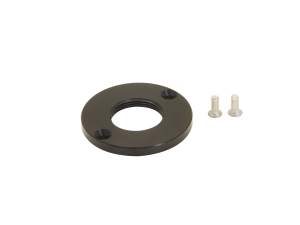

919P-050-26, 919P-150-26	919P-26FA

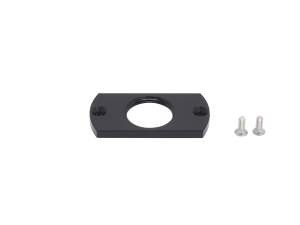

919P-250-35	919P-35FA
919P-020-12, 919P-050-18H	Fiber adapters not mountable

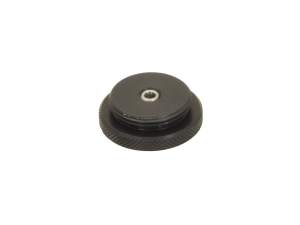

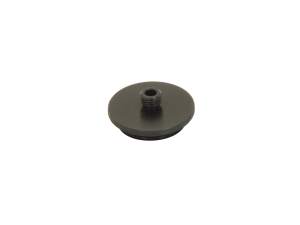

The 919P-SMA and 919P-FC fiber adapter can be used with most of the detector models. Remove the snout for Models 919P-003-10 and 919P-010-16 and directly mount the fiber adapters on the thread. In order to accommodate various aperture sizes, we provide adapter rings as well as the fiber adapters. Refer to the table for the corresponding adapter ring for each detector model. Note that certain models do not accept a fiber adapter.
