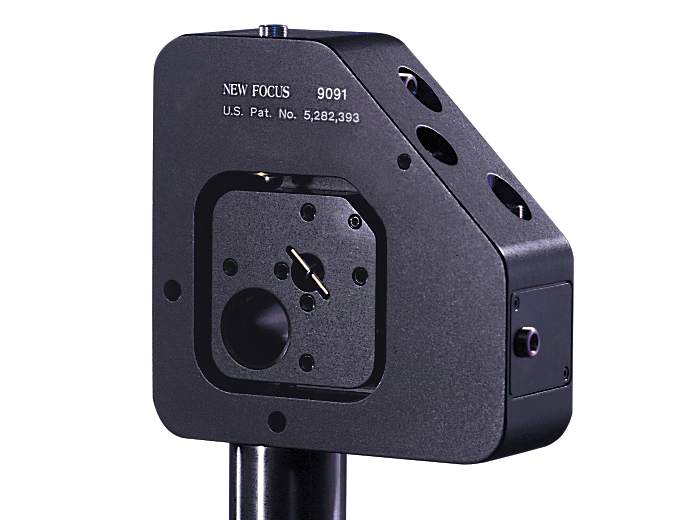

Optical Fiber Positioner, XYZθXθY, Singlemode, M4

The 9091-M Singlemode Fiber Positioner is for singlemode fiber applications. Our five-axis fiber positioner has all motions independently and firmly connected to a single base. This configuration gives you incredible 0.02 μm resolution coupled with unparalleled stability. Convenient mounting holes allow you to attach various accessories for maximum flexibility. An M4 threaded mounting hole allows placement on any post or pedestal in your lab.

Specifications

Technical Specs

Axes of Travel
X, Y, Z, θx, θy
Fiber Type
Singlemode
Travel Range
3 mm
Optical Axis Height
25.4 mm
Angular Range
5°

Sensitivity
X,Y: 0.88 µm coarse; 4 nm fine
Z: 0.88 µm
θx,θy: 9.5 arcsec
Thread Type
M4

Axes of Travel
X, Y, Z, θx, θy
Fiber Type
Singlemode
Travel Range
3 mm
Optical Axis Height
25.4 mm
Angular Range
5°

Sensitivity
X,Y: 0.88 µm coarse; 4 nm fine
Z: 0.88 µm
θx,θy: 9.5 arcsec
Thread Type
M4

Resources & Downloads

3D Product Models

Download CAD Files

Manuals

9091 Fiber Aligner User Manual(418.3 kB, PDF)

2D Product Drawings

9091e-Drawing(167.2 kB, PDF)
