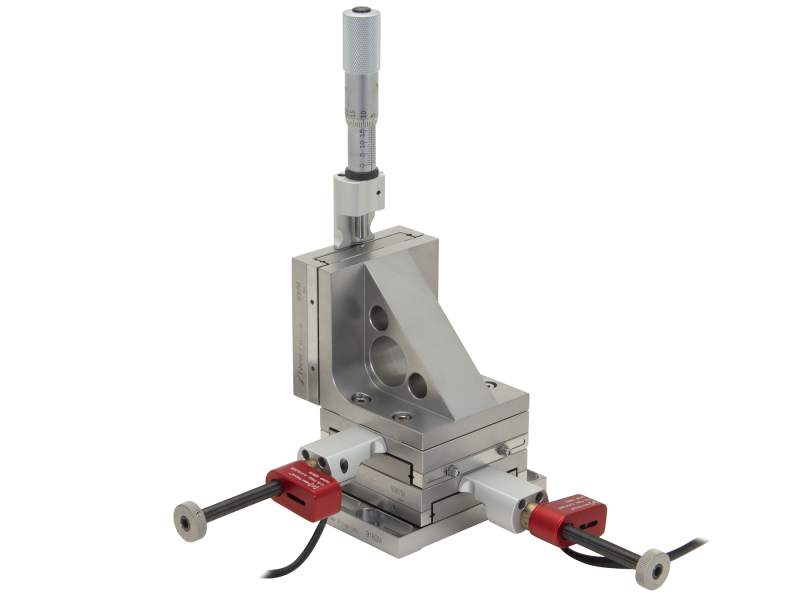

XYZ Linear Stage, 25.4 mm, Crossed Roller Bearing, XY Pico, Z Micro, Metric

Technical Specs

  • Axes of Travel
    XYZ
  • Motorized Axes
    X, Y
  • Micrometer Axes
    Z
  • Travel Range
    25.4 mm
  • Platform Size
    63.5 x 63.5 mm
  • Minimum Incremental Motion
    <30 nm
  • Thread Type
    M4 and M6
  • Material
    Stainless Steel
  • Bearings
    Crossed Roller Bearings
  • Horizontal Load Capacity
    50 lb (222 N)
  • Vertical Load Capacity
    18 lb (80 N)
  • Cable Length
    2.1 m
  • Connector Type
    4-Pin
  • Operating Temperature
    10 to 40°C
