XYZ Linear Stage, Triple Divide, 12.7 mm, XZ Pico, Y Micro, M4, M6

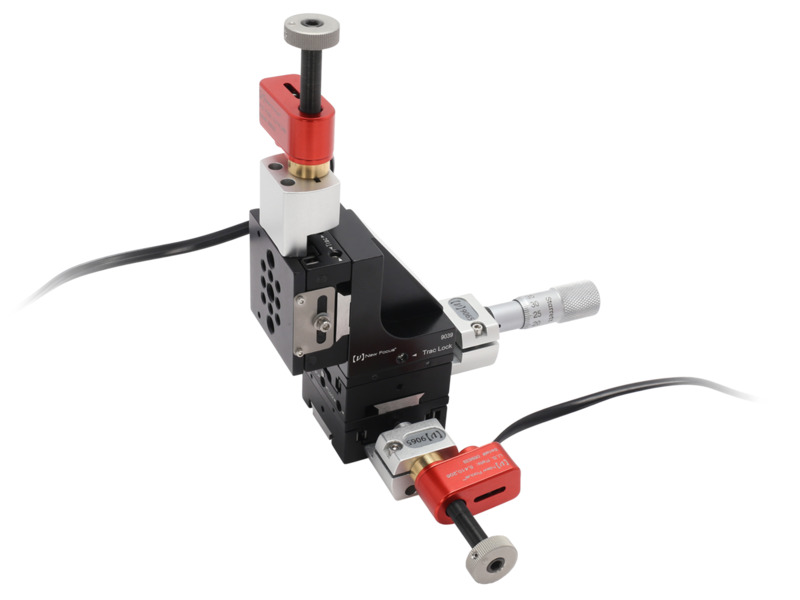

The 9065-XYZ-PNP-M Motorized Triple Divide Translation Stage incorporates our Picomotor™ actuators in the X and Z axes and a micrometer in the Y axis of our Triple Divide™ translation stage to meet your 12.7 mm XYZ travel laboratory applications. All necessary clamps, brackets, and baseplates are included so that the stage can be used right out of the box. Some assembly is required. The Triple Divide translation stage system is based on the unique e⋅z⋅Trac™ rail system and delivers the stability of an integrated stage but is effortlessly adaptable and easy to use. Because of its modularity, these stages are extremely economical. M4 and M6 mounting threads.
Resources & Downloads
2D Product Drawings
20029065x(131.7 kB, PDF)
Literature
Picomotor FAQ(3.1 MB, PDF)
Related Products
Sparepart
