Sorry, this product is no longer offered for sale.

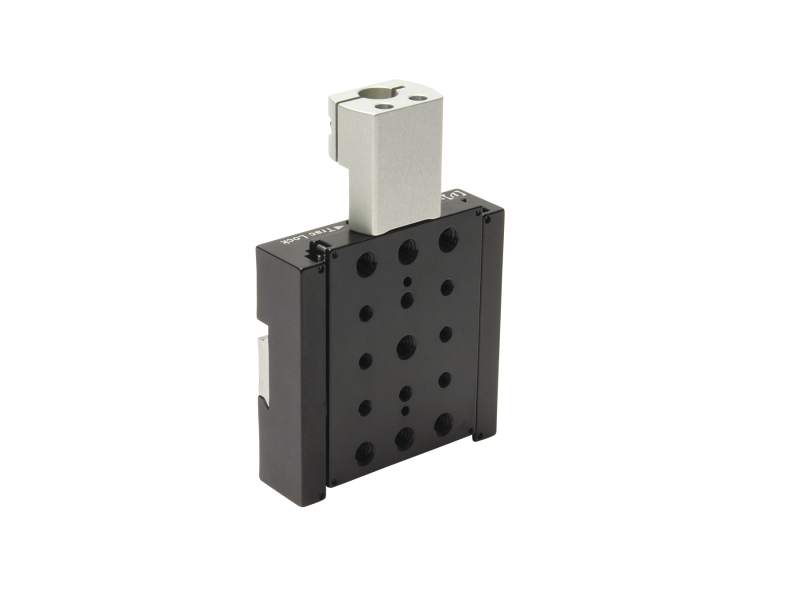

Triple Divide Z Axis Translation Stage, 1.1 in., 8-32 and 1/4-20
The 9064-Z Triple Divide Z Axis Translation Stage in combination with its included e⋅z⋅Trac system provides a low profile for stability and a small footprint. The Z-stage is the same as the X-stage, but with the micrometer clamp repositioned so that weight is held by an actuator and not the springs. You can easily convert back and forth between the X and Z configurations. Combine this stage with any of the accessories on to build the translation system you want. NOTE: Actuators are not included with these stages. We recommend using our 9302 Adjustment Screws or our SM-25 micrometers. For even more precise control, try our 8302 Picomotor™ actuator.8-32 and 1/4-20 mounting threads.
Specifications
- Axes of TravelZ
- Maximum Stage Travel28 mm
- Recommended ActuatorsSM-25 mic, 9302 screw, 8302 pico
- Straight Line Accuracy<2.5 µm
- MaterialAluminum
- BearingsSingle-Row Ball Bearings
- Thread Type8-32 and 1/4-20
Resources & Downloads
2D Product Drawings
9064zb-Drawing(112.2 kB, PDF)
