XYZ Linear Stage, Gothic-Arch, 40 x 40 mm, Micro X, Pico YZ, M4 and M6

0.5 in. Travel Gothic-Arch Bearing Piezo Linear Stages

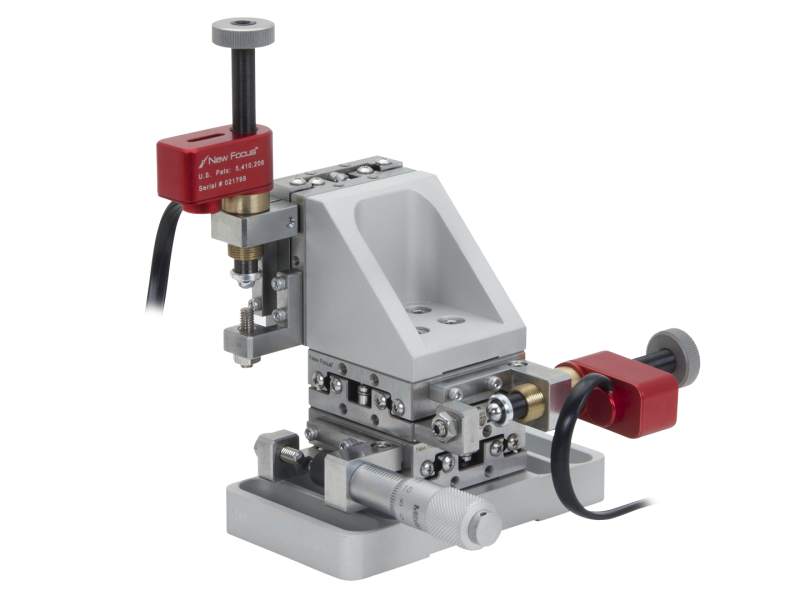

The 9062-XYZ-NPP-M Motorized Gothic-Arch Bearing Stage incorporates our Picomotor™ actuators with our 40 x 40 mm platform gothic-arch-bearing translation stages to achieve the ultimate in stability and rigidity along with remote-control operation. A Picomotor actuator controls the Y and Z axes, while the X axis is micrometer controlled. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. These stages offer stainless-steel construction, thumbscrew locks, and 0.5 inch (12.7 mm) travel range. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. M4 and M6 threads

Specifications

Technical Specs

Travel Range
12.7 mm
Axes of Travel
XYZ
Motorized Axes
Y, Z
Micrometer Axes
X
Included Actuators
Picomotor:
Micrometer:
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Resolution
0.5 µm (Micrometer)
Centered Load Capacity
84 N
Vertical Load Capacity
22 N

Bearings
Gothic Arch Bearings
Material
Stainless Steel
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
M4 and M6
Platform Size
40 x 40 mm
Operating Temperature
10 to 40°C

Travel Range
12.7 mm
Axes of Travel
XYZ
Motorized Axes
Y, Z
Micrometer Axes
X
Included Actuators
Picomotor:
Micrometer:
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Resolution
0.5 µm (Micrometer)
Centered Load Capacity
84 N
Vertical Load Capacity
22 N

Bearings
Gothic Arch Bearings
Material
Stainless Steel
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
M4 and M6
Platform Size
40 x 40 mm
Operating Temperature
10 to 40°C
