High-Energy Pinhole, Molybdenum, 1 µm, 900 Series
High-Energy Pinhole, Molybdenum, 1 µm, 900 Series
Model: 900PH-1
Product Series Overview
900 Series High Energy Mounted Molybdenum PinholesThe 900PH-1.0 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 1 ± 0.5 μm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. This version is mounted for use with our Model 900 spatial filter.
Resources & Downloads
Other
900PH-1 RoHS Certificate(264.7 kB, PDF) 900PH-1_ROHS2-2021.pdf(279.5 kB, PDF)
2D Product Drawings
900P-MNT DWG.pdf(207 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PH-1.0High-Energy Pinhole, Molybdenum, 1 µm, Unmounted | In Stock | ||||

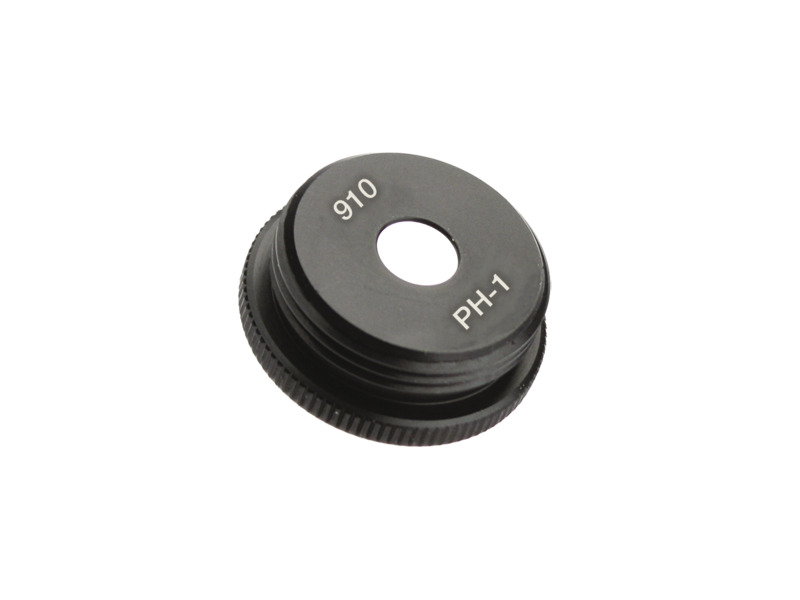

 | 910PH-1High-Energy Pinhole, Molybdenum, 1 µm, 0.875-20 Thread | 3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
