Port Plug, 1.0 in. Port, Diffuse Gold, 819C and 819D Spheres
Port Plug, 1.0 in. Port, Diffuse Gold, 819C and 819D Spheres
Model: 819M-PP-GL-1.0
Product Series Overview

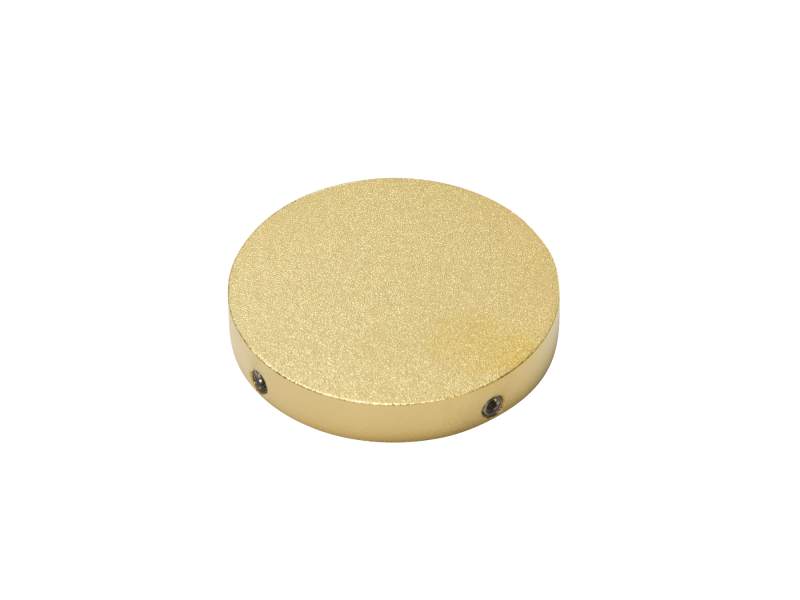

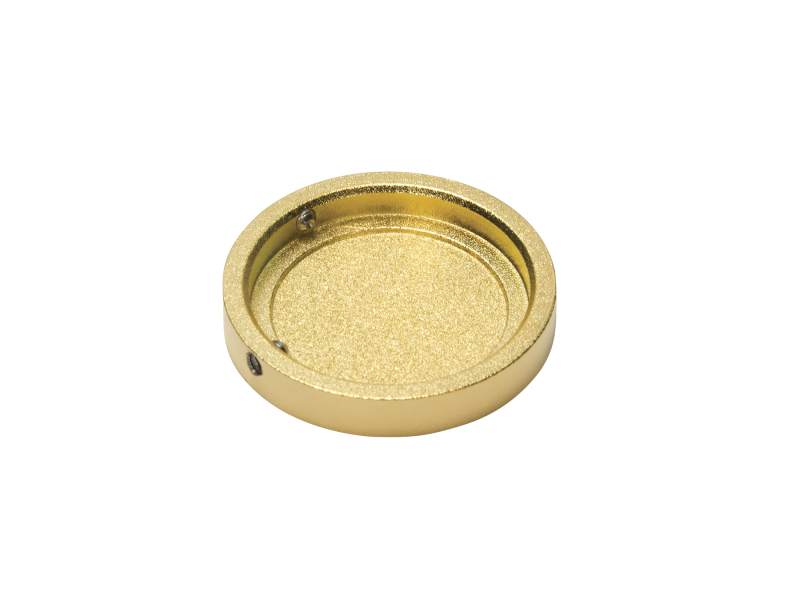

Port Plugs for Integrating SpheresThe 819M-PP-GL-1.0 Diffuse Gold Coated Port Plug is for use on 1 inch ports of diffuse gold coated 819C or 819D Series spheres. Tighten with two M3 size set screws using a 1.5 mm allen wrench, which are included with the part.
Specifications
- TypePort Plug
- Detector Type819C & 819D Series
- Sphere MaterialDiffuse Gold
- Port Size1.0 in.
- MaterialBlack anodized aluminum
Resources & Downloads
Literature
DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
