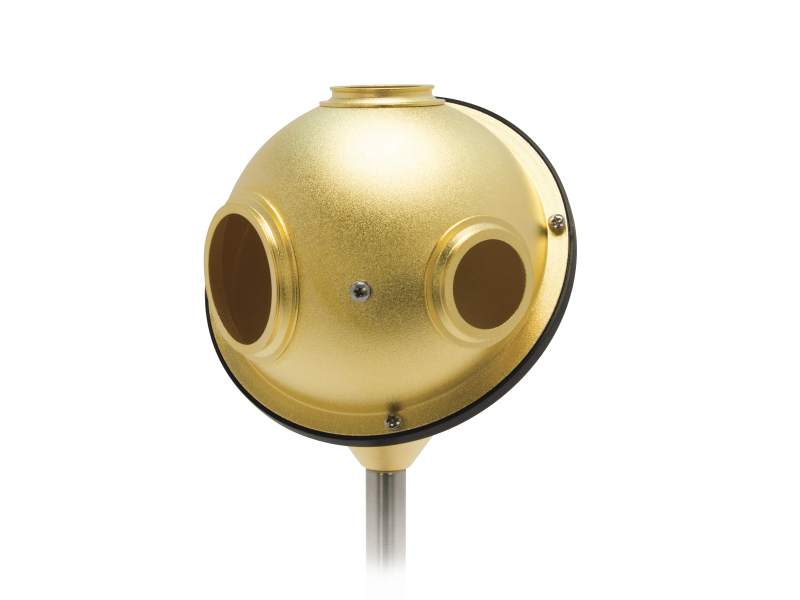

Integrating Sphere, 3-Port, 4 in. Diameter, Diffuse Gold Coating

Technical Specs

  • Detector Type
    Diverging Beam Integrating Sphere
  • Spectral Range
    800 nm to 20 µm
  • Sphere Size
    4 in.
  • Sphere Material
    Diffused Gold

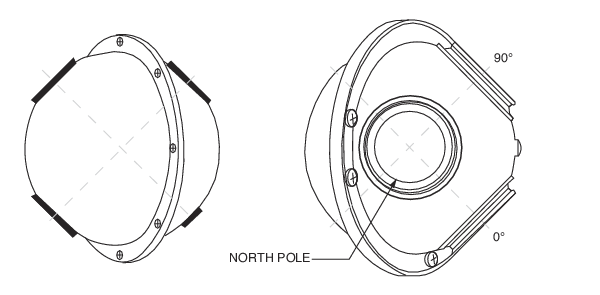

  • North Pole Port Size
    1.0 in.
  • 0 Degree Port Size
    1.5 in.
  • 90 Degree Port Size
    1.0 in.
  • Thermal Limit
    600°C
  • Material
    Diffused gold
