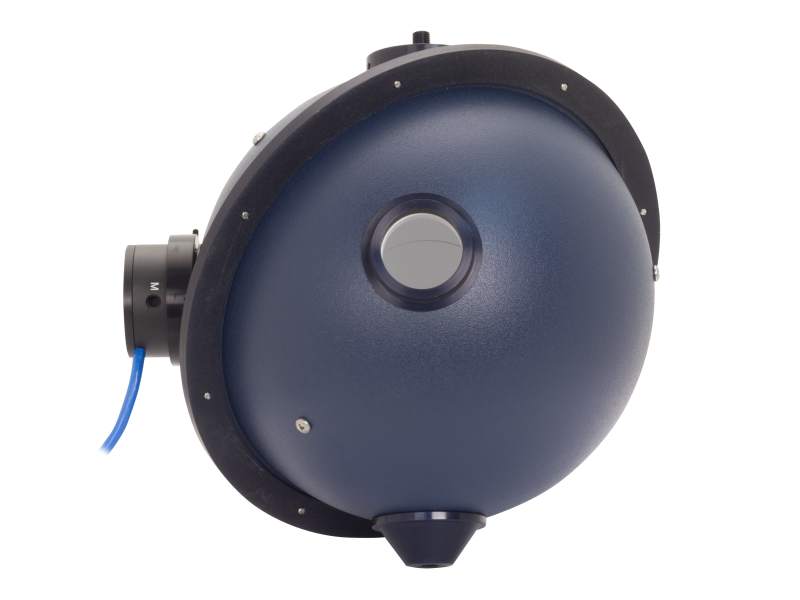

Integrating Sphere Detector, Collimated Beam, 5.3 in., 220-1100 nm

  • Detector Type
    Collimated Beam Integrating Sphere
  • Detector Input
    Free Space
  • Detector Material
    UV Enhanced Silicon
  • Spectral Range
    220 - 1100 nm
  • Sensor Size
    Ø11.3 mm
  • Attenuator
    None
  • Maximum Measurable Power
    850 mW
  • Minimum Measurable Power
    100 nW
  • Maximum Measurable Power Benchtop Meter
    0.85 W
  • Maximum Measurable Power Handheld Meter
    0.85 W
  • Power Range
    100 nW - 500 mW @ 350 nm
  • Calibration Module
    Removable DB15 Connector
  • Calibration Uncertainty without Attenuator
    ±3% @ 220-829 nm
    ±3.5% @ 830-959 nm
    ±3% @ 960-1100 nm
  • Linearity
    ±0.5 %
  • Sphere Size
    5.3 in.
  • Sphere Material
    PTFE
  • Input Port Size
    1.0 in.
  • Connector Type
    DB15
  • Cable Length
    1.5 m
