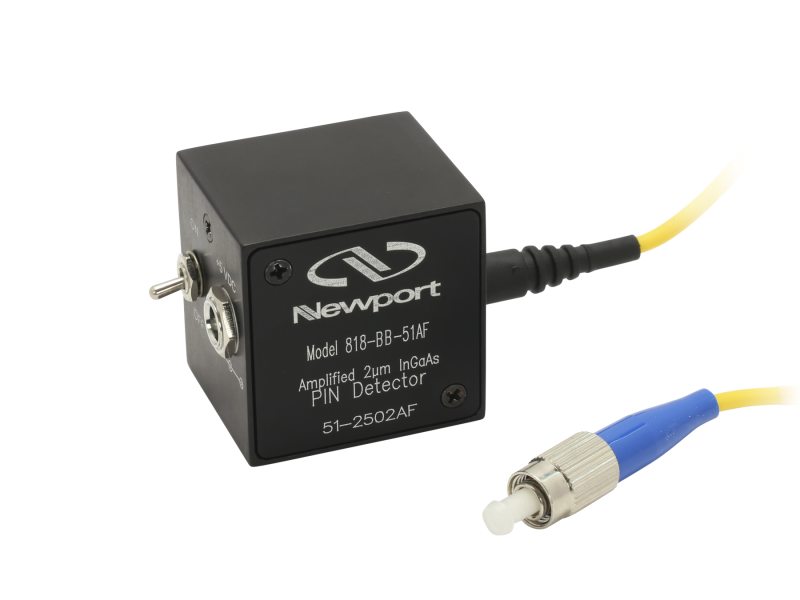

Amplified Photodetector, Biased, AC coupled, 1475–2100 nm, Extended InGaAs, 10 GHz, FC/UPC

Technical Specs

  • Optical Input
    FC/UPC
  • Active Diameter
    0.040 mm
  • Detector Material
    Extended InGaAs
  • Detector Type
    Semiconductor PIN, biased
  • Wavelength Range
    1475-2100 nm
  • Bandwidth
    10 GHz
  • Rise Time
    <40 ps
  • Responsivity
    2350 V/W at 2000 nm
  • Output Connector
    SMA
  • Output Impedance
    50 Ω
  • Amplified
    Yes
  • Bias Voltage
    3 V
  • Cut-off Frequency
    >10 GHz
  • Dark Current
    <1 µA
  • NEP
    25 pW/√Hz at 2000 nm
  • Fall Time
    <35 ps
  • Power Requirements
    Includes AC adapter
  • Mounting Holes
    8-32 and M4
