Dielectric Mirror, Laser Line, Zerodur, 203.2 mm,λ/10, 1030-1090 nm

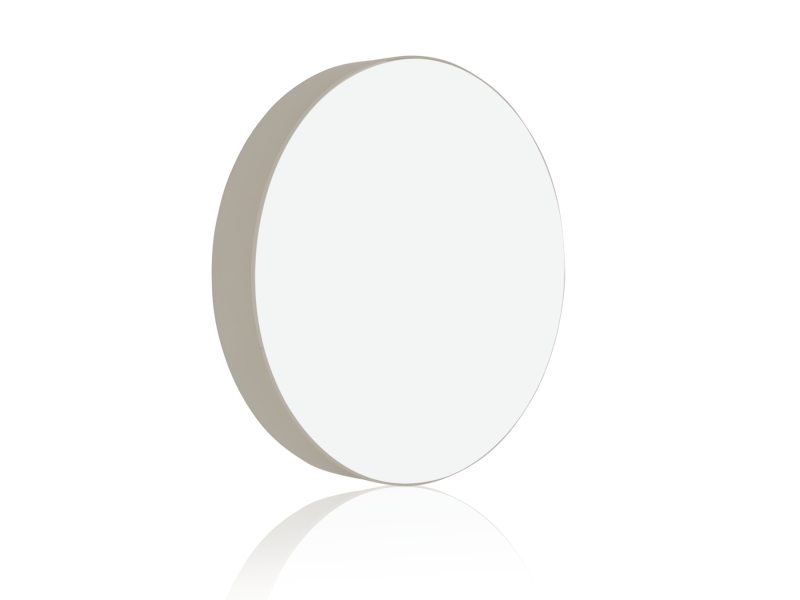

The 80Z20DM.10 Laser Line Dielectric mirror is a highly efficient reflector optimized for a narrow 1030 to 1090 nm wavelength range. This 8 inch (203.2 mm) diameter mirror is made from a 29.5 mm thick Zerodur substrate. Zerodur is a glass-ceramic material where thermal expansion is nominally zero. This extra stability can be critical for applications requiring diffraction limited performance. The DM.10 coating is designed for use with low-power Nd:YAG lasers and has a center wavelength of 1064 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 10-5 surface quality.

Specifications

Technical Specs

Wavelength Region
IR
Wavelength Range
1030-1090 nm
Mirror Shape
Round
Diameter
203.0 mm
Material
Zerodur^® or equivalent
Coating Type
Laser Line Dielectric
Coating Code
DM.10
Reflectivity

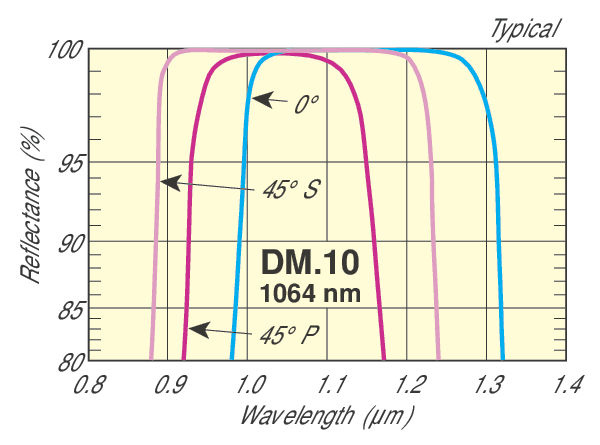

R_s,R_p>99% @ 1030-1090 nm
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
80Z20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
29.5 mm
Thickness Tolerance
±0.38 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.51–1.52 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm² CW, 4 J/cm² for 10 nsec pulses @ 1064 nm

Wavelength Region
IR
Wavelength Range
1030-1090 nm
Mirror Shape
Round
Diameter
203.0 mm
Material
Zerodur^® or equivalent
Coating Type
Laser Line Dielectric
Coating Code
DM.10
Reflectivity
R_s,R_p>99% @ 1030-1090 nm
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
80Z20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
29.5 mm
Thickness Tolerance
±0.38 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.51–1.52 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm² CW, 4 J/cm² for 10 nsec pulses @ 1064 nm

Resources & Downloads

Other

80Z20DM.10 RoHS Certificate(264.8 kB, PDF)
DM.10 Raw Data.xlsx(66.8 kB, XLSX)

2D Product Drawings

80Z20DM.10 Drawing(371.2 kB, PDF)

Related Products

Compatible

Description	Compatibility	Avail.	Price

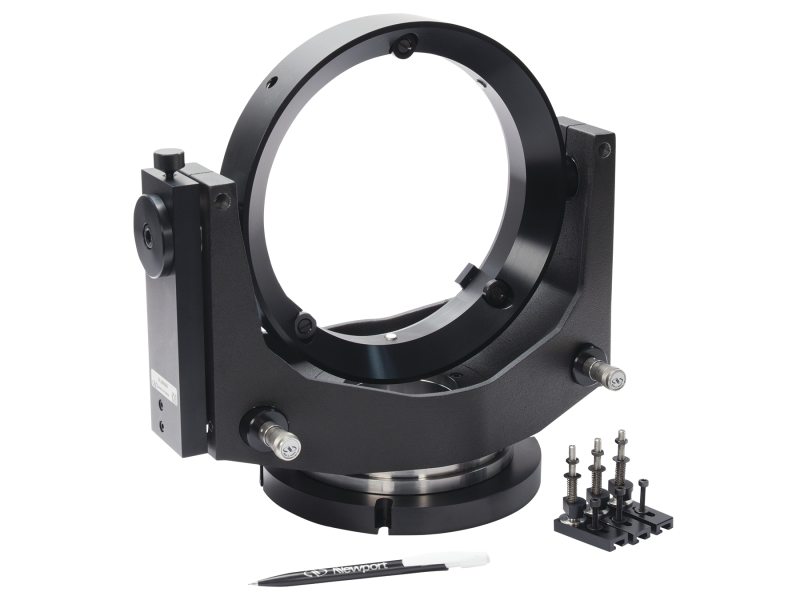

SL20ABDGimbal Optical Mount, Ø8.0 in., 2 BD Differential Micrometers	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$4,549

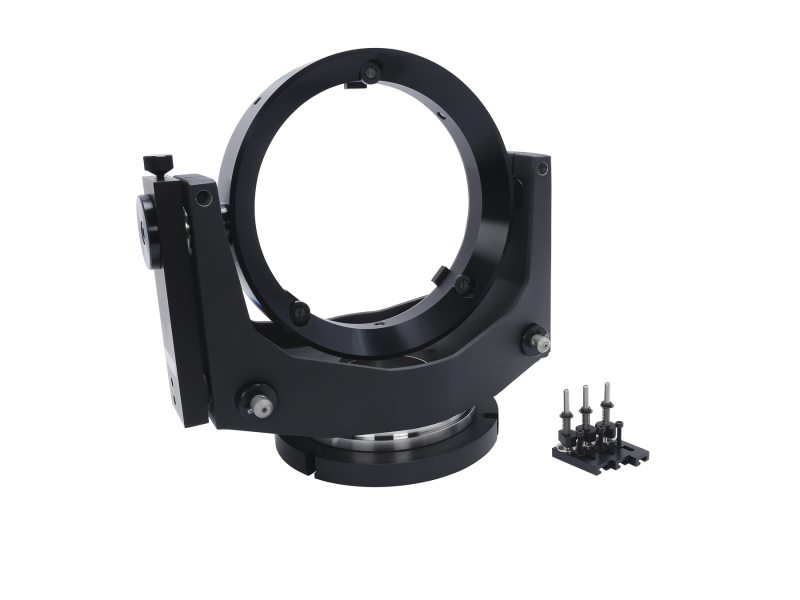

SL20ABHCGimbal Optical Mount, Ø8.0 in., 2 BHC Locking Allen-Key Screws	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,693
