Motorized XY Fiber Positioner, M4 Tapped Hole

Motorized XY Fiber Positioner, M4 Tapped Hole

Model: 8051-M

$1,856

Show

Compare

Add to List

Product Series Overview

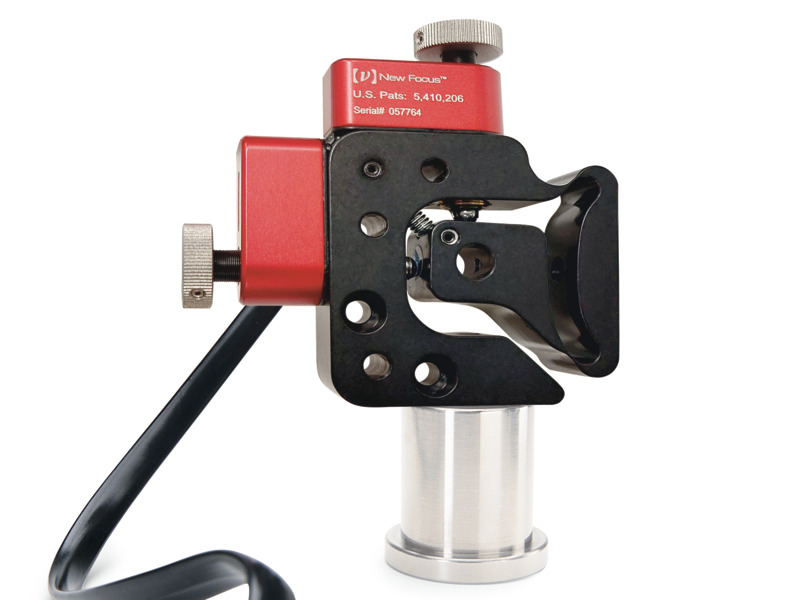

Motorized XY Fiber Positioner

The 8051-M Motorized XY Fiber Positioner improves the resolution of our manual fiber positioner from 1.0 μm to finer than 0.1 μm. Combining one of these stages with our Model 9092 coupler body and clamp gives you a good motorized multimode-fiber positioner. M4 tapped hole.

Specifications

Technical Specs

Axes of Travel

X, Y
Travel Range

+/- 1.5 mm
Thread Type

M4
Connector Type

6 Pin

Maximum Speed

1 mm/min
Minimum Incremental Motion

30 nm
Operating Temperature

10-40 ˚C

Axes of Travel

X, Y
Travel Range

+/- 1.5 mm
Thread Type

M4
Connector Type

6 Pin

Maximum Speed

1 mm/min
Minimum Incremental Motion

30 nm
Operating Temperature

10-40 ˚C

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

8051c-Drawing (108.9 kB, PDF)

Literature

Picomotor FAQ (3.1 MB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		8725 Multi-Axis Adapter, Picomotor, 6 pin to 3x 4 pin	UNIVERSAL		In Stock	$122

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

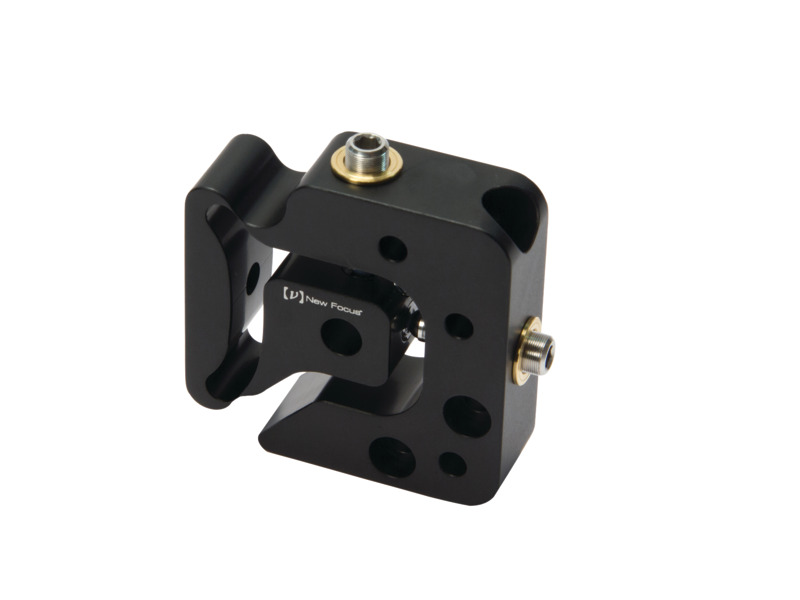

		9051-M XY Fiber Launcher, Flexure Design, Bare, M4	METRIC		In Stock	$310

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		8742-4-KIT Picomotor Controller Kit, Four-Axis	UNIVERSAL		3 Weeks	$1,426
