Sorry, this product is no longer offered for sale.

1/4 m Imaging Spectrograph, MS257 Series, RS-232 and USB

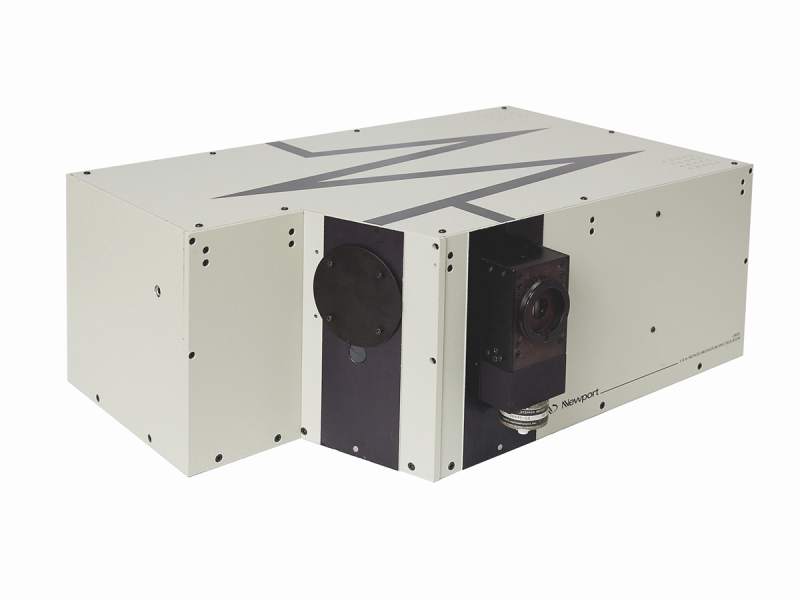

Oriel MS257 1/4 m monochromator

The model 77782 is the RS-232 / USB version of the MS257™ 1/4 m Imaging Spectrograph. The MS257 spectrograph is a completely automated, efficient 1/4 m instrument, with enough versatility to satisfy most spectroscopy applications. It is an F/3.9 instrument with a focal length of 257.4 mm, usable as a monochromator or true flat field imaging spectrograph. Stray light is negligible, and there is no re-entrant spectra. The MS-257 has 2 output ports, 1 input port (with optional accessory can support 2 inputs), and supports 4 gratings.

Specifications

Technical Specs

Resolution
0.10 nm
Output Ports
2
Output Focal Length
257 mm
Input Focal Length
220 mm
Wavelength Selection Method
Motorized
Wavelength Accuracy
±0.1 µm
Wavelength Precision
0.015 nm

F/#
F/3.9
Light Leakage
0.03%
Number of Gratings Supported
4
Array Bandpass
81

Resolution
0.10 nm
Output Ports
2
Output Focal Length
257 mm
Input Focal Length
220 mm
Wavelength Selection Method
Motorized
Wavelength Accuracy
±0.1 µm
Wavelength Precision
0.015 nm

F/#
F/3.9
Light Leakage
0.03%
Number of Gratings Supported
4
Array Bandpass
81

Resources & Downloads

Application Notes

Spectroradiometric Measurements(479.4 kB, PDF)

2D Product Drawings

BPT-pg4-48a(493.5 kB, PDF)
BPT-pg4-48b(141.1 kB, PDF)
