Reflectance Inspection Probe, 1.4 mm Input, 200 x 6 mm Slit, 2 m

Model: 77553

$2,388

Add to List

Compare

Add to List

Overview

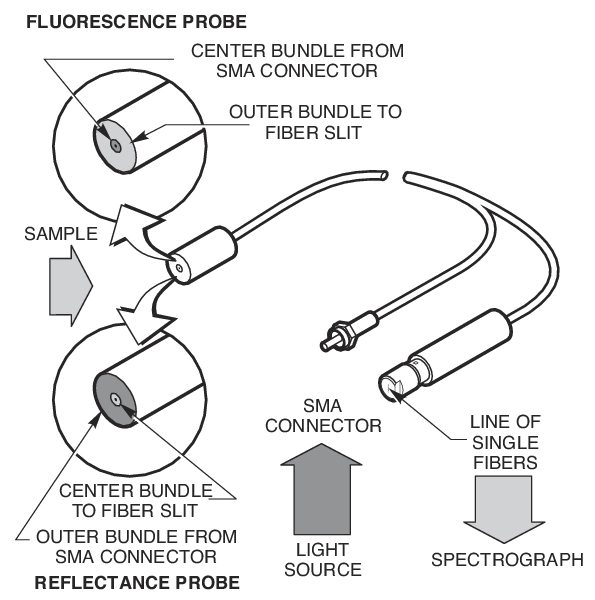

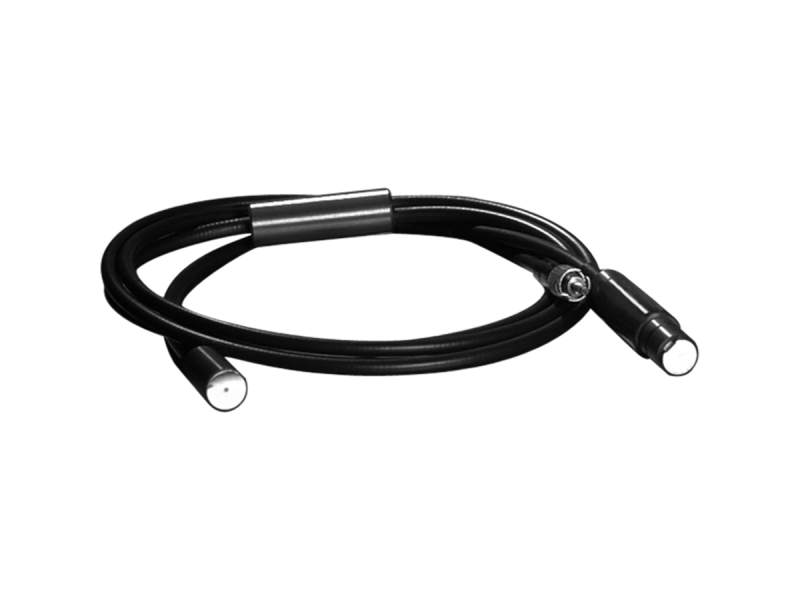

The 77553 Reflectance Inspection Probe simplifies reflectance measurements with Oriel^® Benchtop Spectrometer Systems. The common leg is terminated with an 11 mm ferrule, which mates to Oriel flanged fiber holders. This 1.4 mm input diameter probe has a 200 x 6.0 mm slit and is 2 meters long.

Technical Specs

Type

Reflectance Inspection Probe
Fiber Terminations

11 mm Quick Connect Ferrule
Fiber Dimensions

200 µm x 6.0 mm

Wavelength Range

260 - 2500 nm
Numerical Aperture

0.22

Technical Specs

Type

Reflectance Inspection Probe
Fiber Terminations

11 mm Quick Connect Ferrule
Fiber Dimensions

200 µm x 6.0 mm

Wavelength Range

260 - 2500 nm
Numerical Aperture

0.22
