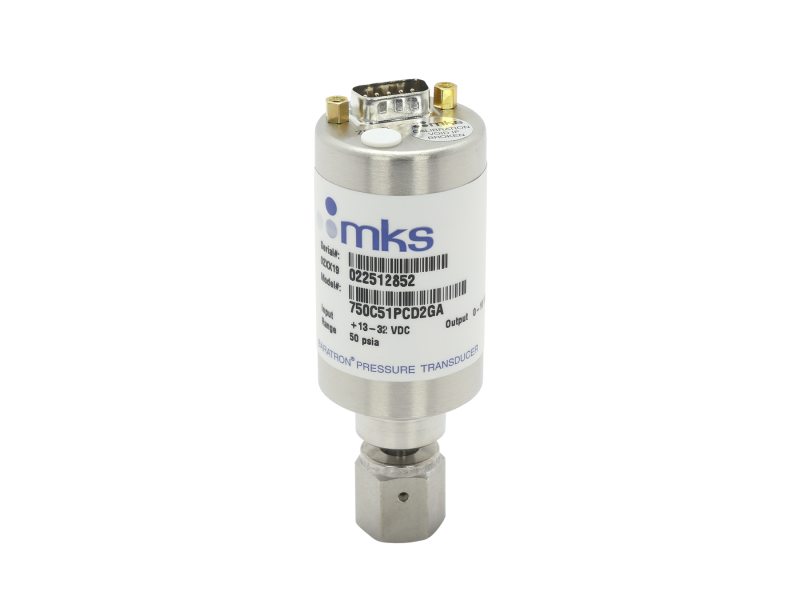

Absolute Pressure Transducer, 50 psia, 4 VCR-F, 0-10 VDC, DB9

The 750C51PCD2GA High-Pressure Baratron® Absolute Capacitance Manometer features 50 psia Full Scale pressure measurement with 1% reading accuracy, a 4VCR-style female fitting, and 0-10 VDC output signal from a 9-pin D-subminiature electrical connector. This rugged, industrial-grade pressure / vacuum transducer, offers superior accuracy, repeatability, and long-term signal stability. All exposed sensor surfaces have exceptional resistance to corrosion from a wide variety of aggressive chemicals. The sensor is fully welded, for protection during accidental exposure to dangerous chemicals. The Type 750C is referenced to high vacuum pressure, and is designed for use in industrial, analytical, and electronic measurement applications. Its flexible design allows it to be used either for new processing systems, or for retrofits into existing processing systems. With tight process control, the 750C is especially useful in applications requiring higher accuracy at the lower ends of the pressure measurement range.
