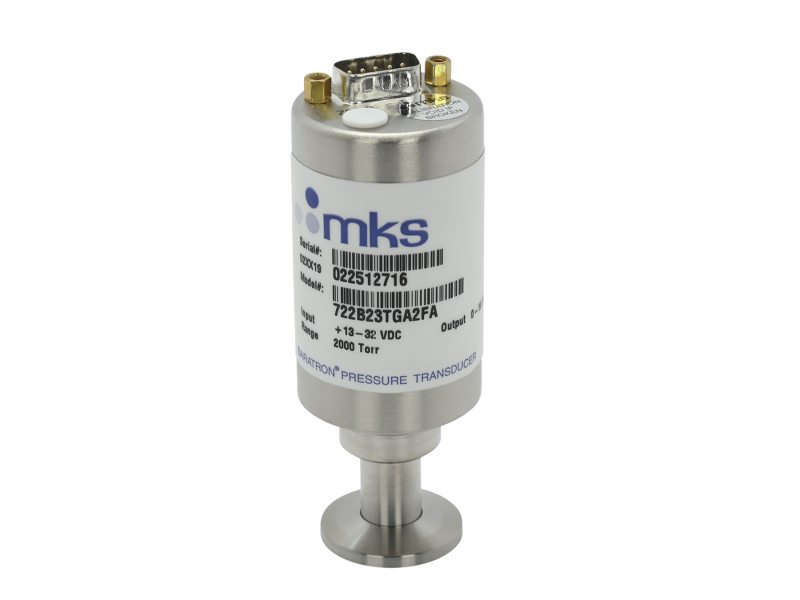

Absolute Capacitance Manometer, Compact, 2000 Torr, ISO-KF, 9-Pin D-Sub

722B Compact Absolute Capacitance Manometers

Specifications

Technical Specs

Type
Pressure Transducer
Measurement Type
Absolute
Full Scale Pressure Range
2000 Torr
Accuracy
0.5% of Reading
Zero Temperature Coefficient
0.008% of F.S./°C (10 Torr through 25,000 Torr), 0.020% of F.S. (1 and 2 Torr)
Span Temperature Coefficient
0.04% of Reading./°C
Operating Temperature Range
0 - 50°C (32 - 122°F)
Overpressure Limit
4000 Torr
Burst Pressure
100 psi

Exposed Materials
316 Stainless Steel
Response Time
<20 msec
Power Requirements
13 - 32 VDC
Analog Output
0 - 10 VDC
Electrical Connector
9-pin D-subminiature
Fitting Type
NW16 ISO-KF
