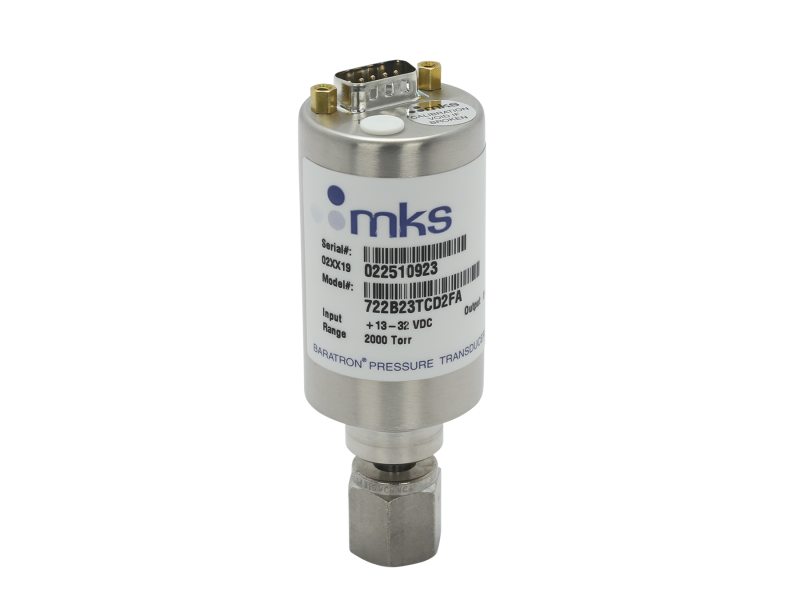

Absolute Capacitance Manometer, Compact, 2000 Torr, 4 VCR, 9-Pin D-Sub
Specifications
Type
Pressure Transducer
Measurement Type
Absolute
Full Scale Pressure Range
2000 Torr
Accuracy
0.5% of Reading
Zero Temperature Coefficient
0.008% of F.S./°C
Span Temperature Coefficient
0.04% of Rdg./°C
Operating Temperature Range
0 - 50°C (32 - 122°F)
Overpressure Limit
4000 Torr
Burst Pressure
100 psi
Exposed Materials
316 Stainless Steel
Response Time
<20 msec
Power Requirements
13 - 32 VDC
Analog Output
0 - 10 VDC
Electrical Connector
9-pin D-subminiature
Fitting Type
4 VCR female
