Sorry, this product is no longer offered for sale.

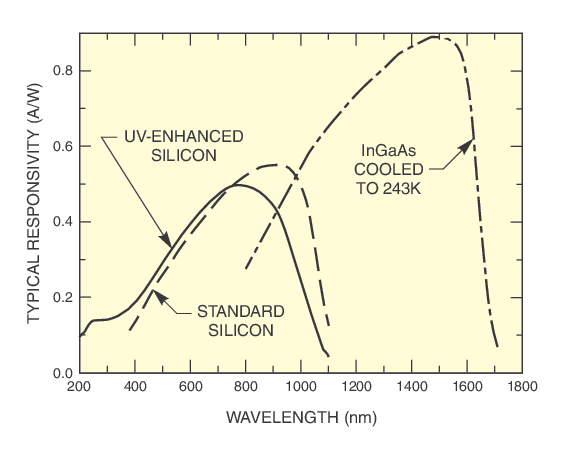

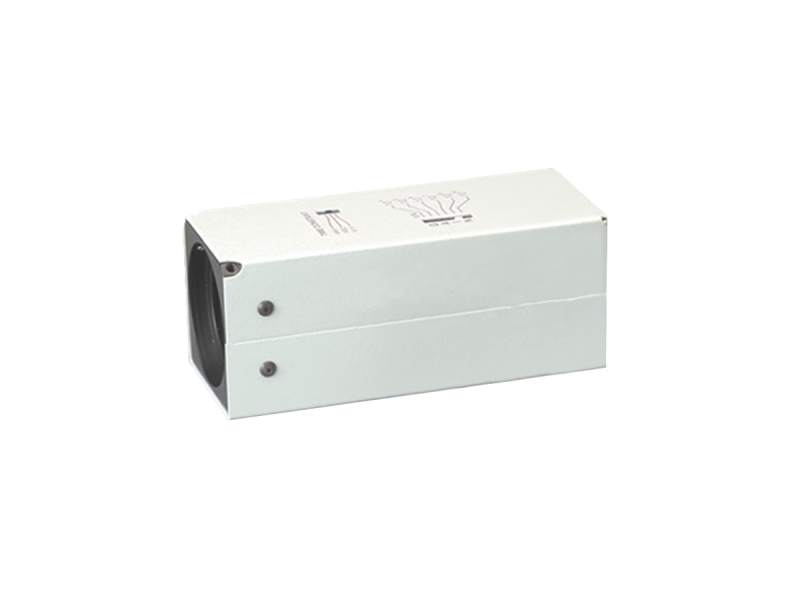

Detector, UV-Enhanced Silicon, Flange Mount, Amplified, 200-1100 nm

The 71883 Amplified UV Silicon Photodetector for Optical Power Meters is operated in photovoltaic mode for best DC and low frequency performance. This uncalibrated 10 x 10 mm Silicon detector has a 185 to 1100 nm range. 1.5 Inch Series female flanged housing. This version has a built-in trans impedance amplifier. The amplifier provides trans impedance gains from 104 V/A to 109 V/A. It also offers three selectable time constant settings to allow you to match the upper bandwidth limit with your experimental needs. Operating at the lowest bandwidth setting allows you to operate at the lowest noise levels. The amplified models require +/-15 V DC; the 70703 Power Supply provides the required power.

Specifications

Technical Specs

Spectral Range
185 - 1100 nm
Sensor Size
10 x 10 mm
Flange Type
1.5 Inch Series Female Flange

Material
Silicon

Spectral Range
185 - 1100 nm
Sensor Size
10 x 10 mm
Flange Type
1.5 Inch Series Female Flange

Material
Silicon

Resources & Downloads

2D Product Drawings

BPT-pg6-24b(498 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70703Laboratory Power Supply, +/- 15 VDC, 115 VAC	UNIVERSAL		4 Weeks	$480
		70709Laboratory Power Supply, +/- 15 VDC, 230 VAC	UNIVERSAL		In Stock	$475

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70055Detector Cable, Amplified Si, Ge, and Pyro, DC Lab Power Supply, 3.6 m Length	UNIVERSAL		In Stock	$170
		70018Cable, BNC Low Noise, 6 Foot (1.8 Meter) Length	UNIVERSAL		In Stock	$140
